Availability: 6 in stock

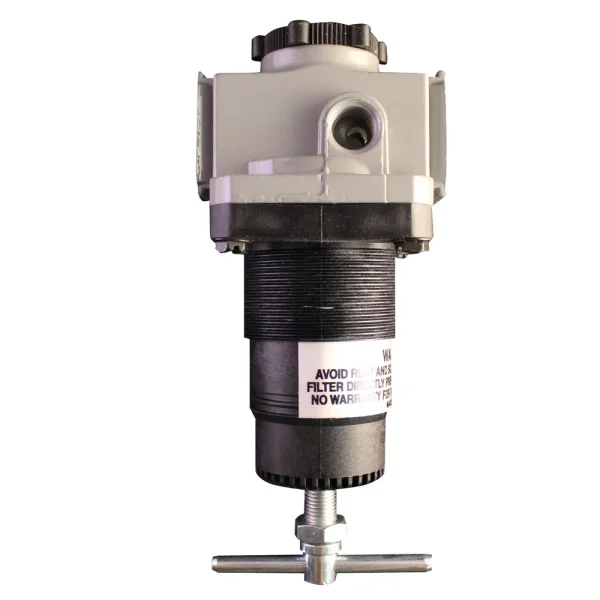

The Milton® 1/4″ NPT Standard Air Pressure Regulator offers stable downstream air pressure over a wide range of applications. This regulator improves air systems with accurate control, fast response time, and minimal pressure drop. Offset gauge ports can also serve as two 1/4″ supply lines. The aluminum die cast body comes with a balanced piston and molded rubber seat. As a standard pressure regulator, the 1/4″ NPT Regulator has a maximum inlet pressure of 250 PSI with a regulated pressure range of 5-125 PSI.
| FRL type | Regulator |
| Height | 2.6875 |
| Key Feature | Should also be preceded by a filter to elimanate damage to regulator |
| Length | 5.25 |
| Maximum PSI | 250 PSI |
| NPT Thread Size | 1/4″ NPT Inlet |
| Number of Items | 1 |
| Short Description |
Regulator 1/4″ NPT, 2-125 PSI |
| UPC | 30937111135 |
| Width | 2.75 |
