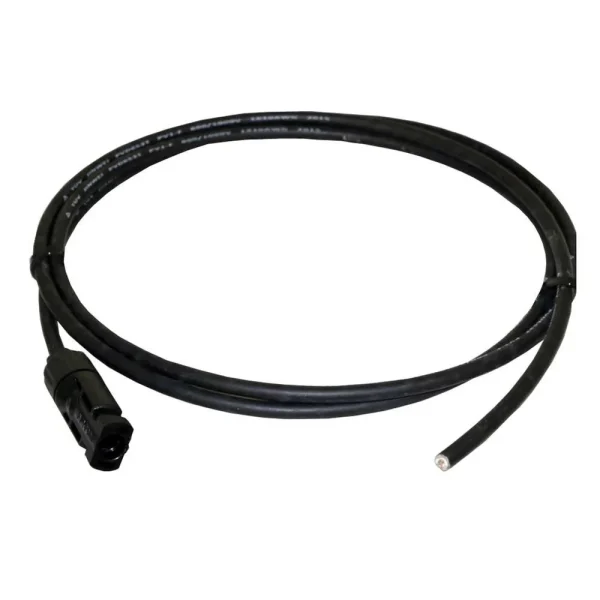

AIMS Power 10 AWG PV Wire Female MC4 to Cut End Extension Cable (PVF50FT10AWG)

The AIMS Power 10 AWG PV Wire Female MC4 to Cut End Extension Cable (PVF50FT10AWG) is designed for reliable performance in solar power applications. This high-quality extension cable is essential for connecting solar panels to inverters, ensuring efficient energy transfer. The tinned copper conductors enhance durability and resistance to corrosion, ensuring longevity and consistent performance. This extension cable meets UL4703 standards, guaranteeing safety and reliability for your solar energy systems.

Specifications:

• Voltage Rating: 600 V
• Temperature Rating: 90 °C (194 °F) dry or wet
• Ambient Temperature: -40 °C to +90 °C (-40 °F to +194 °F)
• Max Short Circuit Temperature: 250 °C (482 °F)
• Bending Radius: ≥ 5 × outer diameter
• Conductor Structure: 75/0.30 TC
• Conductor ID: 3 mm
• XLPE Thickness: 0.72 mm
• Jacket Outer Diameter: 6.4 mm
• Weight: 5.6 lbs per 100 ft
• Allowable Current: 49.6 A
• Conductor Resistance: 3.59 Ω/km
• UL Certification: UL4703
