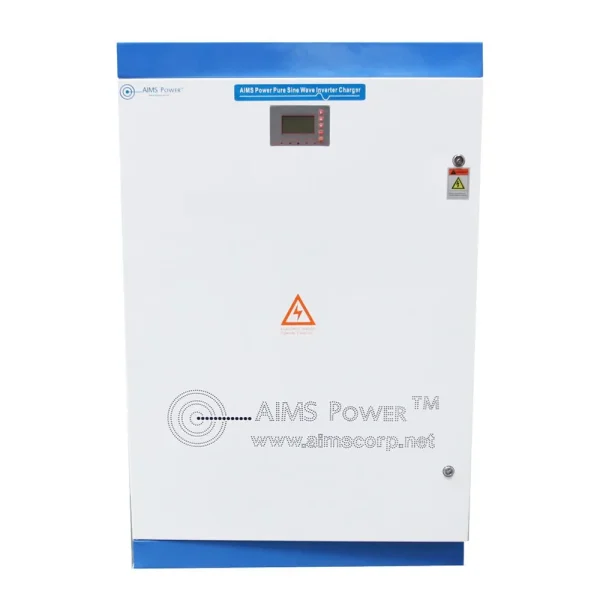

AIMS Power PICOGLF30KW300V4083P 30kW Pure Sine Inverter Charger is a high-performance power conversion solution that uses pure sine wave technology to efficiently convert DC to AC power. This inverter charger is ideal for high-demand applications like off-grid solar systems, backup power solutions, and industrial use. With an adjustable output voltage range and various programmable settings, it ensures flexibility and reliability. Featuring a user-friendly LCD panel and low idle consumption, the inverter is easy to maintain while offering a high efficiency of over 94%. It is equipped with comprehensive protections such as overvoltage, undervoltage, and overload safeguards, making it a safe and efficient solution for critical power needs.
Features:
- DC Input: 300V (Range: 200-600V DC).
- Rated Current: 100A.
- AC Output Power: 30kW (30,000W).
- Output Voltage: 208V (+- 3%) with customizable options (110/120/220/230/240/280/400/415/440).
- Frequency: Adjustable 50/60Hz.
- Power Factor: >0.95.
- Current: 83.3A per phase.
- Inverter Technology: Pure sine wave for clean, reliable power.
- LCD Display: For easy monitoring and adjustments.
- Protections: Overload, short circuit, over-voltage, under voltage, and over temperature protection.
- Humidity: 90% non-condensing.
- Operating Temperature: -25°C to 55°C (-13°F to 131°F).
- Cooling: Fan cooled (Always on).
- Noise Level: <50dB.
- Certifications: CE, CSA 22.2, UL 1741, CEC.
- Dimensions: 33.5″D x 33.5″W x 51.2″H.
- Weight: 926 lbs.
Benefits:
- Efficient and reliable power conversion for high-demand systems.
- Flexible voltage and frequency options to fit various applications.
- User-friendly LCD display for real-time monitoring.
- High efficiency of over 94%, saving energy and reducing operating costs.
- Comprehensive protection system ensures safety and prevents system failures.
- Suitable for off-grid solar systems, backup power solutions, and industrial use.
- Robust and reliable for harsh environmental conditions.
Technical Specifications:
- Model: PICOGLF30KW300V4083P.
- DC Input: 300V (Range: 200-600V DC).
- AC Output Power: 30kW (30,000W).
- Output Voltage: 208V (+- 3%) with customizable options.
- Frequency: Adjustable 50/60Hz.
- Power Factor: >0.95.
- Current: 83.3A per phase.
- Cooling: Fan cooled (Always on).
- Noise Level: <50dB.
- Dimensions: 33.5″D x 33.5″W x 51.2″H.
- Weight: 926 lbs.
