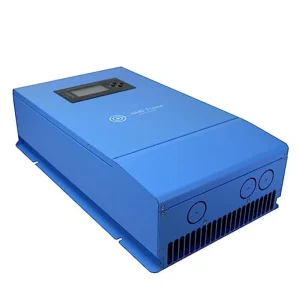

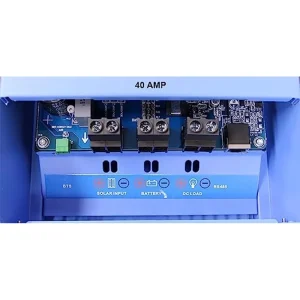

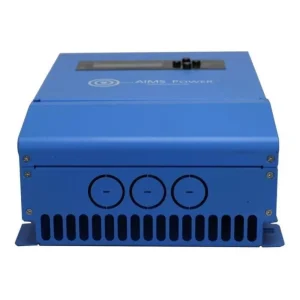

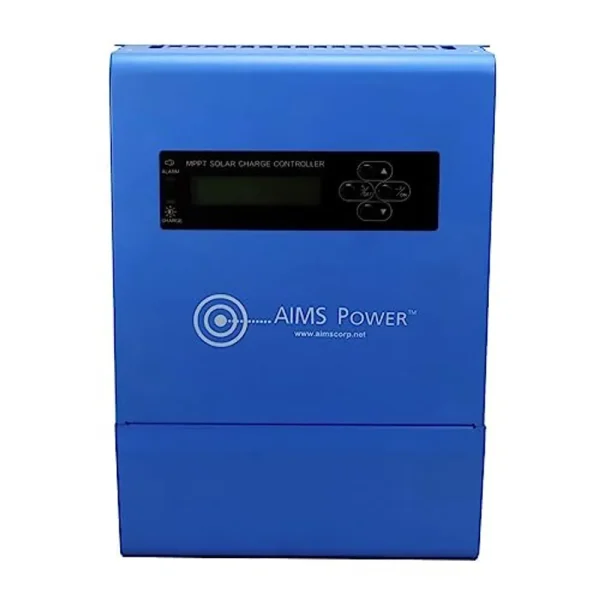

AIMS Power 40 Amp MPPT Solar Charge Controller (SCC40AMPPT)

AIMS Power SCC40AMPPT 40 Amp MPPT Solar Charge Controller is a high-performance charging solution for 12V, 24V, 36V, and 48V solar systems. Equipped with Maximum Power Point Tracking (MPPT) technology, it ensures the highest efficiency by automatically adjusting to varying weather conditions, achieving up to 99% efficiency. This 4-stage charging controller includes bulk, absorption, float, and equalize stages, providing precise charge management for various battery types, including lithium and lead-acid. With safety features like overload protection, short circuit prevention, high/low voltage protection, and thermal overload protection, this unit is reliable and built to last. Additionally, its durable, marine-coated metal housing and IP43 protection make it ideal for harsh environments.

Specifications:

• Max Battery Current: 40 amps
• Max PV Open Circuit Voltage: 150Vdc
• Self Power Consumption: <4 watts
• Efficiency: 97.5% – 99%
• Protections: Overload, short circuit, high voltage, high temperature, low voltage, auto-correct
• Low Voltage Reconnection: 12.5V
• Low Voltage Disconnect Voltage: 10.5V (Adjustable 10.5-12.5V)
• Enclosure: IP43, metal
• Cooling: Heatsink, no fans
• Temperature Range: -25°C to 60°C (-13°F to 140°F)
• Wire Knockouts: 1.25 inches
• Humidity: 100% non-condensing
• Temperature Compensation: -5mV°C / 2V (with BTS)
• Certifications: CE, ETL to UL1741, RoHS compliant
• Dimensions: 10.6L x 7.25W x 3.5H inches
• Weight: 8 lbs (boxed: 9 lbs)
