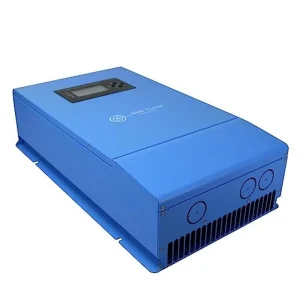

AIMS Power 80 Amp MPPT Solar Charge Controller is a high-efficiency solar charge controller designed to maximize the energy harvested from your solar system. Using Maximum Power Point Tracking (MPPT) technology, this controller ensures an efficiency of up to 99%, significantly reducing power loss during solar energy conversion. It automatically adjusts to varying weather conditions, optimizing performance for maximum energy output.

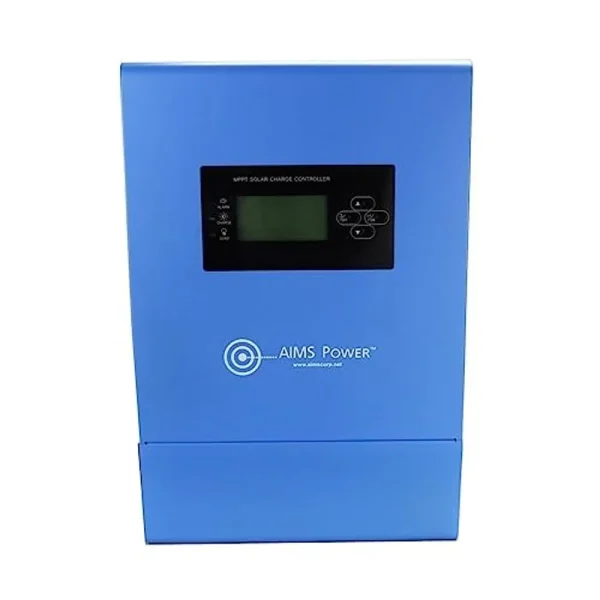

The AIMS Power Charge Controller features an LCD screen for real-time performance monitoring, displaying key information such as battery voltage, solar panel voltage, current, and energy produced. LED indicators show the charging status and fault conditions for easy troubleshooting. With a rugged, fanless design and efficient thermal management, this controller is built to withstand tough environments, making it perfect for both residential and commercial solar installations.
Key Features:
- MPPT technology for maximum power output and efficiency
- Multi-stage charging for 12V, 24V, 36V, and 48V systems
- LED indicators and LCD display for real-time monitoring
- RS485 connection for remote computer monitoring
- Battery type selector and adjustable charging voltage

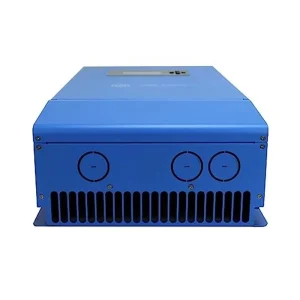

- Quality heatsink cooling – no fans required
- Over-temperature, overload, short-circuit, and voltage protection
- Marine-coated and CE, ETL, and RoHS compliant
- Stackable design for flexible installation
Specifications:
Electrical:
- PV Operating Voltage:
- 15-150Vdc @12V
- 34-150Vdc @24V
- 50-150Vdc @36V
- 60-150Vdc @48V
- Rated PV Input:
- 12V: 1200 Watts
- 24V: 2400 Watts
- 36V: 3600 Watts
- 48V: 4800 Watts
- Maximum Charging Current: 80 Amps
- Maximum DC Load Current: 60 Amps
- Maximum PV Open Circuit Voltage: 150Vdc
- Self-Power Consumption: <4 watts
- Efficiency: 98.5%
- Protections: Overload, short circuit, high voltage, high temperature, low voltage, and auto-correct
- Monitoring: RS485 port for computer monitoring
Charging:
- Battery Types: Gel, Sealed, AGM, Flooded, Lithium, User Defined
- 4-Stage Charging: Bulk, Absorption, Float, Equalize
- Bulk Charge Voltage:
- Sealed: 14.4V
- AGM/Gel: 14.2V
- Flooded: 14.6V
- User Defined: 10-15V
- Float Charge Voltage:
- Sealed/AGM/Gel: 13.7V
- Flooded: 13.6V
- User Defined: 10-15V
- Equalize Charge Voltage:
- Sealed: 14.6V
- AGM/Gel: 14.8V
- Flooded: 14.8V
- User Defined: 10-15V
- Low Voltage Reconnection: 12.5V
- Low Voltage Disconnect Voltage: 10.5V (adjustable 10.5-12.5V)
Mechanical:
- Enclosure: IP43 protection, metal
- Cooling: Heatsink
- Humidity: 100% non-condensing
- Temperature Compensation: -5mV°C / 2V with BTS
- Temperature Range: -25°C to 60°C (-13°F to 140°F)
- Conformal Coated for Marine Environments

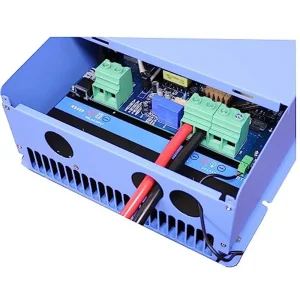

- Wire Knockouts: 1.25”
- Unit Weight: 19 lbs
- Boxed Weight: 21 lbs
- Dimensions: 14”L x 9”W x 4.7”H
- Warranty: 2 years
- Certifications: ETL to UL1741, CE, RoHS, CETL
