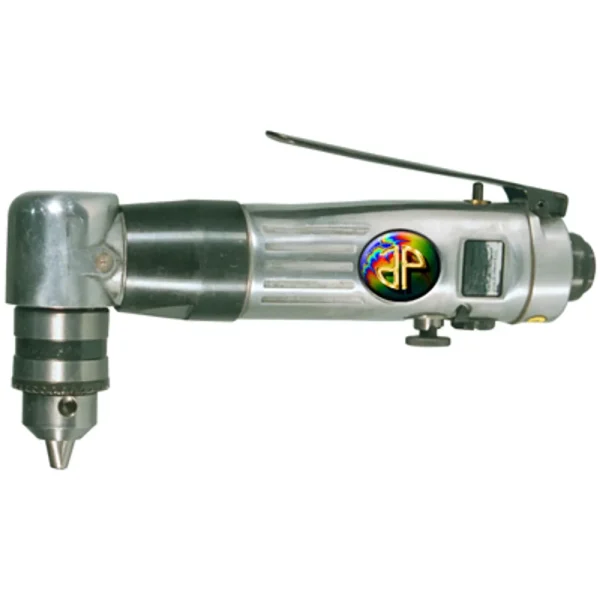

Astro Pneumatic 3/8″ Reversible Angle Head Air Drill 1800 RPM (510AHT)

Astro Pneumatic 3/8″ Reversible Angle Head Air Drill 1800 RPM Compact Design (510AHT) is engineered for precision and efficiency. The 90° angle head design allows for close clearance operation, making it ideal for tight spaces.

Equipped with a 2-gear drive system and a powerful 1/2 hp motor, this Astro Pneumatic 510AHT angle head air drill provides a free speed of 1,800rpm at 120psi and 1,600rpm at 90psi. The drill’s air inlet thread NPT is 1/4″, and it requires a 3/8″ (10mm) air hose I.D. size, with an average air consumption of 6cfm at 90-120psi.

• Specifications and Dimensions
  • Chuck Capacity: 3/8″
  • Free Speed: 1,800rpm at 120psi / 1,600rpm at 90psi
  • Overall Length: 8-1/4″ (210mm)
  • Net Weight: 2-3/8lbs. (1.07kg)
  • Motor: 1/2hp
  • Air Inlet Thread NPT: 1/4″
  • Air Hose I.D. Size: 3/8″ (10mm)
  • Avg. Air Consumption: 6cfm
  • Air Pressure: 90-120psi
• Key Features and Benefits
  • 90° angle head design for close clearance operation
  • Compact and lightweight for fatigue-free handling
  • 2-gear drive system for enhanced performance
  • 1/2 hp motor providing powerful drilling capabilities
  • Versatile 3/8″ chuck capacity
  • Ideal for various drilling applications
