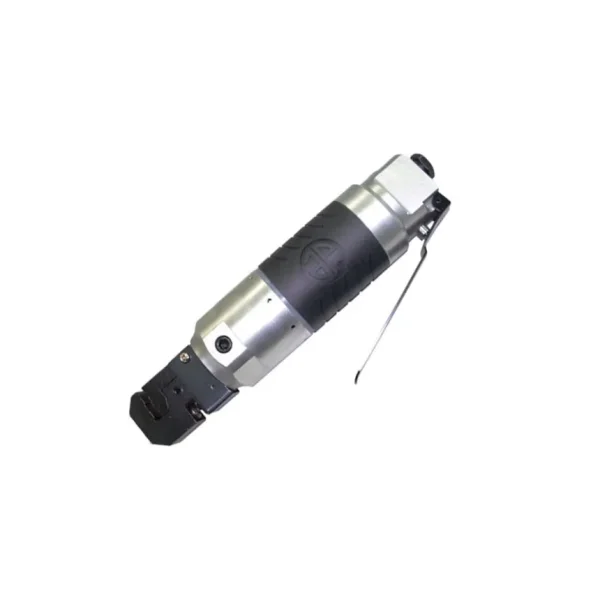

Astro Pneumatic 8 mm Straight Grip Punch Flange – 608ST

• Blade designed for easy replacement
• Performs hole punching and panel crimping
• Features a rotating head for convenient use
• Every pull of the lever delivers a single punch or a single flange crimp with precision control
• Forms an offset crimped edge on sheet metals for no-bump lap welds
• Lightweight, yet ruggedly built
• Cuts metal fabrication time in half

Specifications:

• Punch Diameter: 5/16″ (8mm)
• Punch Capacity: 1/16″ (1.6mm)
• Crimping Capacity: 1/16″ (1.6mm)
• Piston Stroke: 5/32″ (4mm)
• Overall Length: 10″ (254mm)
• Net Weight: 3lbs. (1.36kg)
• Air Inlet Thread NPT: 1/4″
• Air Hose I.D. Size: 3/8″ (10mm)
• Avg. Air Consumption.: 4cfm Air Pressure: 90-120psi
