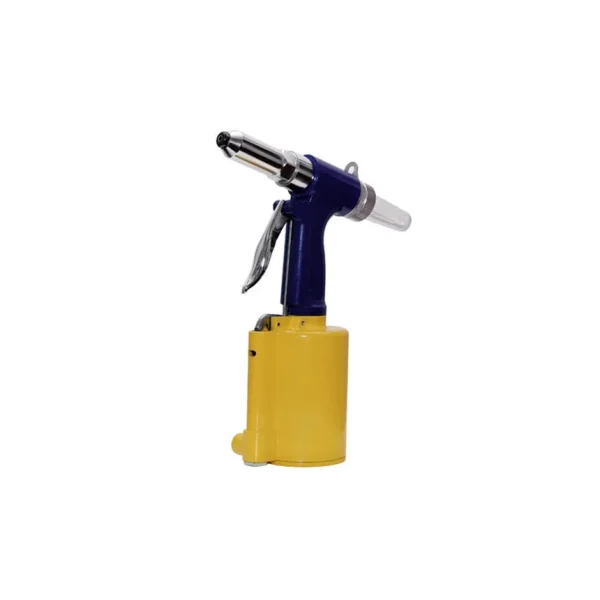

Powerful durable, high speed production tool
- Quick release air valve permits cylinder to return quickly for high speed assembly operations: Prevents overloading for long life
- Performs well at any angle
- Gets into hard-to-reach areas
- Provides quick, quiet and comfortable operation preventing user fatigue
Includes the following nosepieces:
- 3/16″ (4.8mm)
- 5/32″ (4mm)
- 1/8″ (3.2mm), 3/32″ (2.4mm)
Specifications
- Rivet Capacity: 3/16″
- Pulling Pressure: 1983 lbs
- Pulling Force: 380 lbs
- Stroke: 1/2″
- Motor: 1/2 hp
- Air Pressure: 90-120 psi
- Air Consumption: 4 cfm
- Hose Size: 3/8″
- Air Inlet: 1/4″ NPT
- Overall Length: 10-5/8″
- Weight: 3 lbs
