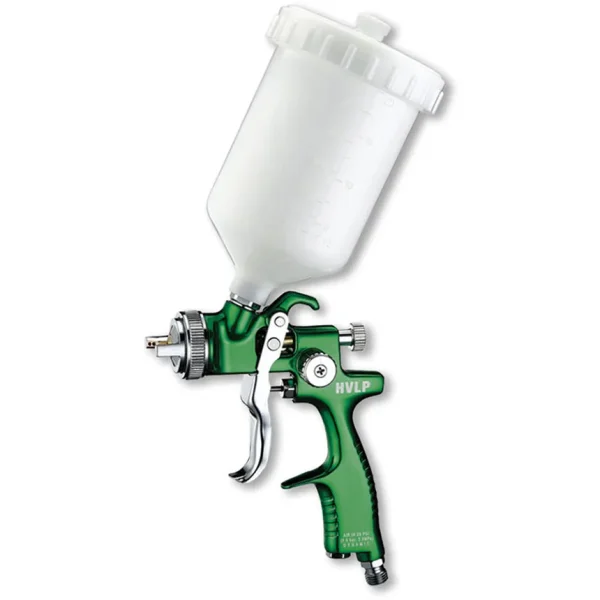

Astro Pneumatic EuroPro Forged HVLP Spray Gun with Plastic Cup
The anodized and forged body of this Astro paint gun provides it with corrosion protection and a longer life. Its unique pattern is designed for great coverage with optimal overlapping. Technicians will also appreciate low overspray while painting body parts with this EuroPro spray gun, as well as the soft trigger pull to reduce fatigue. Choose from the 1.3mm, 1.5mm, 1.7mm or 1.9mm nozzle options and receive great transfer efficiency and superior atomization with each.
Durable & Lightweight
- Forged body provides longer tool life
- Anodized body for corrosion protection
- Internal coated passages
- Stainless steel needle and fluid tip
- Slick finish for faster & easier cleaning
- Lightweight: 325 grams (0.7 Lbs)
High Efficiency
- Unique pattern designed for great coverage, optimal overlapping
- Low overspray (bounce back)
- Great transfer efficiency
- Superior atomization
- Innovative, advanced HVLP technology
Quick Thread Technology
- 1 Turn to lock/unlock the air cap
- 3 Turns to lock/unlock the fluid tip
- Wide threads for easy cleaning
- M16*P1.5 female thread fluid joint
- Compatible with most traditional and disposable cup systems
Smooth Operation
- Soft trigger pull to reduce fatigue
- Precise lubricated adjustment knobs for better control
- Innovative CNC machining to avoid the need for gaskets behind the fluid tip
Specifications:
- Available Nozzle Size: 1.3mm, 1.5mm, 1.7mm or 1.9mm
- Cup Capacity: 600ml
- Operation Pressure: 29 psi
- Weight: 0.7lbs. (325g)
- Gun Dimensions W x H: 7″ x 5-34″ (175mm x 145mm)
- Avg. Air Consumption: 9-10 cfm
- Air Inlet Thread NPT: 1/4″
- Required Compressor: 2 – 5hp
- Max. Pattern at 4″ to 7″ Distance: 9″ – 10-14″ (230-260)
- Air Hose I.D. Size: 10 psi
