Availability: 6 in stock

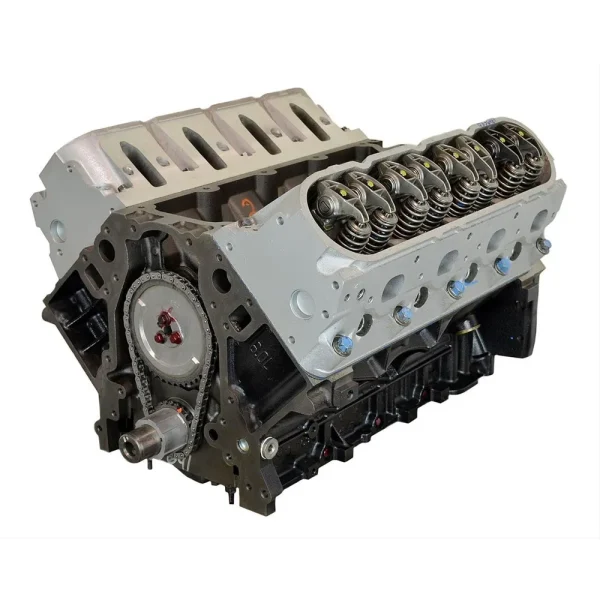

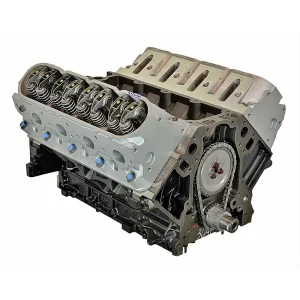

ATK HP93 Chevy LQ4 6.0LBase Engine, or Stage 1 Engine, is designed for those that may have their own component parts already and who also are interested in completing out the build themselves. A GM base engine typically consists of the following: Short Block, Camshaft, Timing set, Cylinder heads, Valve covers, Timing cover, oil pan, oil pump & pick up tube.
Engine Specifications:
This ATK engine was designed to be a performance upgrade for LS based vehicles or perfect for a 2001-2007 Chevy Truck LQ4 or LS swap in a hot rod. Expect big mid to upper end power, will have a noticeable idle. For optimal Performance you will need headers, chassis dyno tune and 36lb injectors. Your engine may not necessarily come with all components listed, but they are listed as our recommendations of parts to run for optimal performance.
ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.
Don’t forget the engine paint!
Engine Information:
• Oil: Conventional / Non Synthetic 10W30
• Oil Filter: Wix or K&N
• Timing: Set to factory specifications via PCM module (ECM TUNING REQUIRED).
• Spark Plug Gap: .040”
• Firing Order: 18726543
• Octane: 91+
• Stall Converter: 1800+
• Exhaust: 1 5/8 Headers
Notes: This engine replaces the 2001-2007 Chevy 6.0L LQ4 engine. ECM MUST BE TUNED, not doing so can damage the engine.
Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. . ATK reserves the right to substitute parts used in engines if necessary.
Shipping is free and lift gate will be provided.
You will receive warranty information and how to return the core in the mail direct from ATK separate from the delivery of the engine.
