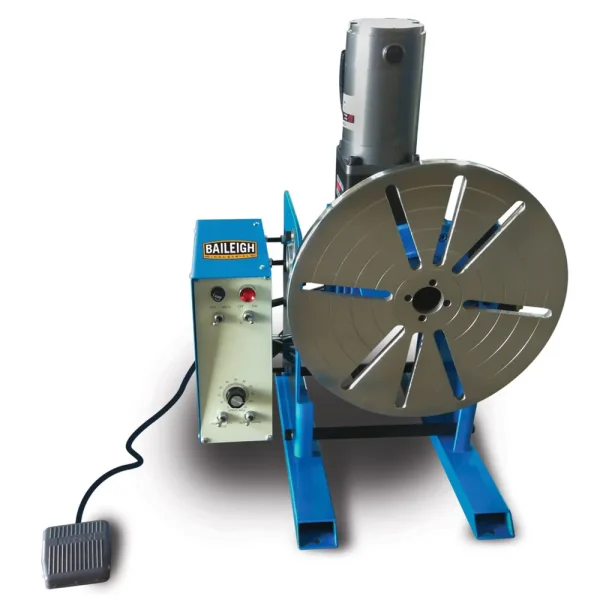

Baileigh 110V Welding Positioner 13″ 770 lbs Capacity (1008397)

Baileigh 110V Welding Positioner 13″ 770 lbs Capacity (1008397) is built to last using only the best components. This 110-volt powered machine has a 770 lb capacity in the vertical position and a 385 lb capacity in the horizontal position. It is very easy to use with its foot pedal control and variable speed.

The variable speed welding positioner features a 13″ turn table and offers 135° of manual tilt, allowing for precise welding angles. The positioner helps save time and money by reducing the handling of parts and almost eliminating the waste caused by inaccurate welds.

• Specifications and Dimensions
  • Length: 23 in.
  • Width: 23 in.
  • Height: 23 in.
  • Net Weight: 175 lbs
  • Table Capacity: 770 lbs
  • Vertical Capacity: 770 lbs
  • Horizontal Capacity: 385 lbs
  • Range of Movement: 0 to 135 Degrees
  • Turntable Size: 13″
  • Speed: 0.3 to 4 rpm
  • Maximum Current: 300 Amps
  • Drive: Foot Pedal
  • Power: 110V
• Key Features and Benefits
  • Table capacity of 770 lbs
  • Variable speed control
  • 110V foot pedal operated
  • Manual tilt with 135° range
  • 13″ turn table for versatile positioning
  • Reduces handling of parts and minimizes waste
  • 1-year parts warranty and lifetime technical support
