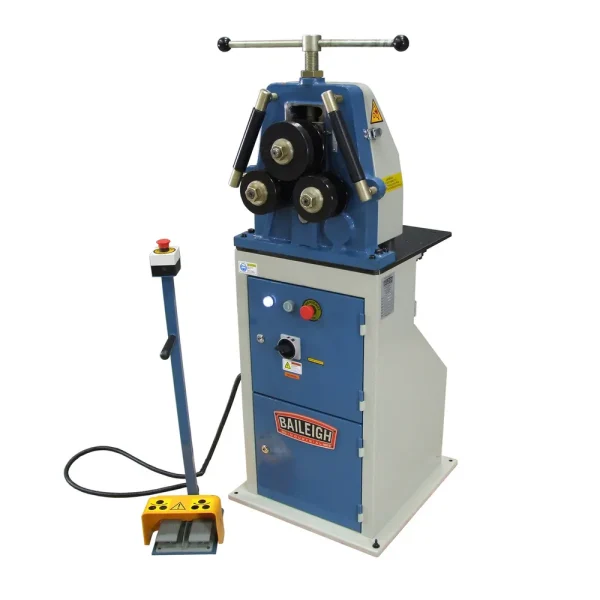

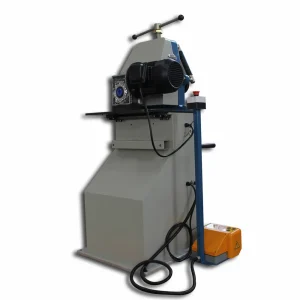

Baileigh 220V 3 Phase R-M10 Bending Machine for Profile and Pipe (1013217) is designed to meet the needs of fabrication shops requiring higher production. This electric ring roller simplifies the process of bending metal profiles and pipes, making it a reliable and efficient tool for your shop.
The Baileigh Bending Machine boasts a maximum capacity of 1.25” mild steel round tubing and 1” schedule 40 pipe. Its open-face design allows for rolling full circles, while the manual drive includes a reduction gearbox to minimize physical effort. The machine base also features a handy storage cabinet for convenience.
- Specifications and Dimensions
- Item Number: R-M10E
- Motor: 2 Hp
- Roll Adjustment: Manual
- Pipe Capacity Size: 1″ (sch. 40) / Min. Dia.: 28″
- Round Tube Capacity Size: 1.25″ (.078″) / Min. Dia.: 31.5″
- Square Tube Capacity Size: 1.25″ (.078″) / Min. Dia.: 35″
- Solid Round Capacity Size: .875″ / Min. Dia. 20″
- Flat Bar Easy Way: 1.96″ (.39″) / Min. Dia.: 15.75″
- Flat Bar Hard Way: 1.18″ (.39″) / Min. Dia.: 19.685″
- Angle Iron Capacity Size: 1.25″ (.157″) / Min. Dia.: 30″
- Shaft Diameter: 1.181″
- Shaft Center Distance: 6.7″
- Lower Roll Dia.: 4.65″
- Pinch: Single
- Power: 220 Volt Three Phase
- Shipping Weight: 635 lbs
- Material Type: All specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
- Shipping Dimensions (Inches): 38x32x53
- Key Features and Benefits
- 220 Volt 3 Phase
- Maximum capacity of 1.25” (.078” wall) mild steel round tubing and 1” schedule 40 pipe capacity

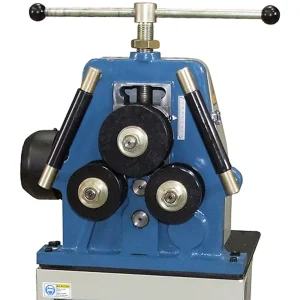

- Open-face design for rolling full circles
- Manual drive with reduction gearbox for less physical effort
- Includes various segment rolls for flat bar, angle iron, and square tubing
- Hardened rolling shafts on bronze bushings for durability
- Cast steel head for maintaining accuracy at full capacity
- Machine base with storage cabinet
- 1-year parts warranty and lifetime technical support
