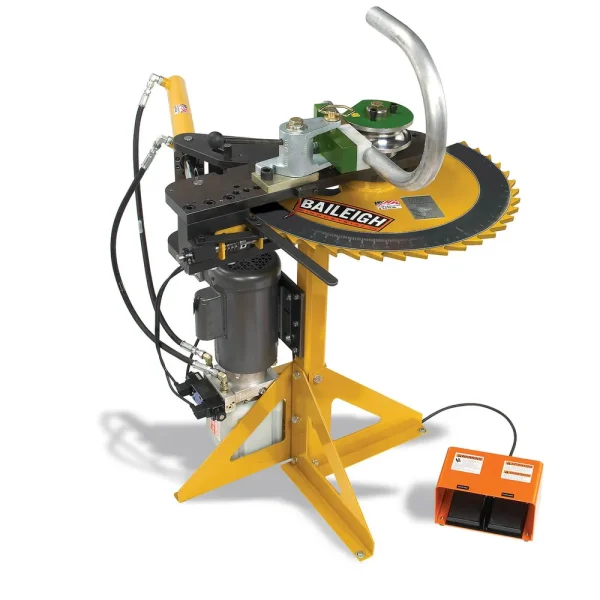

Baileigh Hydraulic Rotary Draw Tube Bender 2″ Schedule (1006776)

Baileigh Hydraulic Rotary Draw Tube Bender 2″ Schedule 40 Pipe Capacity (1006776) is designed to enhance your productivity by eliminating the need for exhausting manual bending. This efficient bender is ideal for various applications, including hand railing and automobile chassis.

The 1006776 hydraulic tube bender requires only 110-volt, single-phase power, making it easy to plug in almost anywhere. It handles a maximum capacity of 2.5” OD tubing, 2” OD Chromalloy, 2” square tubing, and 2” schedule 40 pipe. With a maximum centerline radius of 8”, this bender allows for true 180° bends without re-pinning the die set.

• Specifications and Dimensions
  • Length: 60 in.
  • Width: 44 in.
  • Height: 77 in.
  • Net Weight: 550 lbs
  • Power: 110V Single Phase
  • Maximum Tubing Capacity: 2.5” OD
  • Maximum Pipe Capacity: 2” Schedule 40
  • Maximum Bending Radius: 8” CLR
  • Bending Angle: Up to 200°
• Key Features and Benefits
  • Hydraulic power for increased productivity
  • Handles up to 2” schedule 40 pipe
  • Allows true 180° bends without re-pinning
  • Built-in anti-spring back mechanism
  • Quick-release counter die positioner for efficiency
  • Industrial-grade hydraulics for quick, quiet, and safe operation
  • 1-year parts warranty
  • Lifetime technical support
