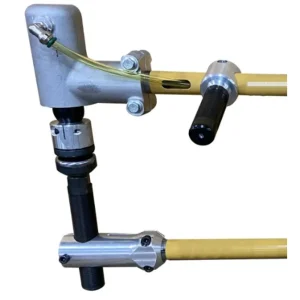

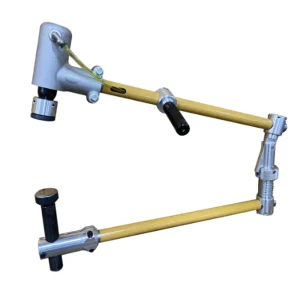

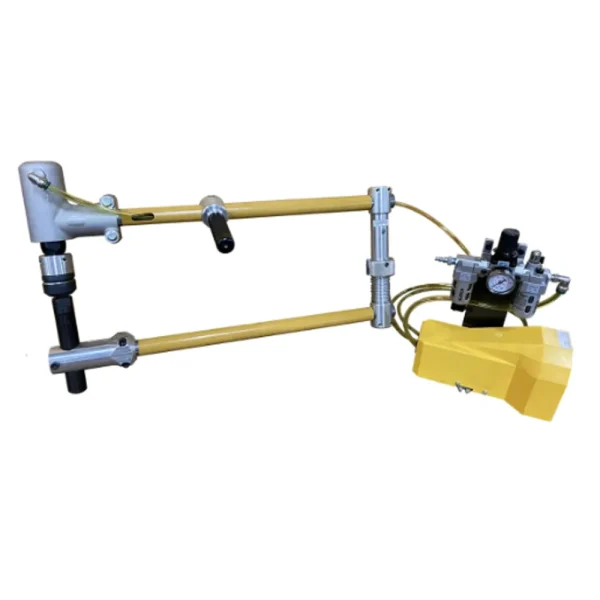

Baileigh Pneumatic 24″ Throat Depth Planishing Hammer Hinged Spine (1230575)

Baileigh BH-62-554 Pneumatic Planishing Hammer (1230575) is designed for precision and efficiency in metal shaping applications. With a 16 gauge mild steel capacity and a fully adjustable 24″ throat depth, this planishing hammer is ideal for various fabrication tasks.

The pneumatic planishing hammer features a hinged spine for quick access to hard-to-reach areas, making it versatile for complex projects. It includes 7 radius dies: flat, 2”, 3”, 6”, 8”, 12”, 24”, and 36”, and has a captured 2.5″ diameter top die with a rubber O-ring detent to prevent it from falling out.

• Specifications and Dimensions
  • Mild Steel Capacity: 16 ga.
  • Tooling Height Adjustment: 11″
  • Speed (Variable): 3200 beats/minute
  • Included Tooling: Flat, 2″, 3″, 6″, 12″, 24″, 36″ Radii
  • Throat Depth: 24″ adjustable
  • Aluminum Capacity: 14 ga.
  • Power: 80-120 Psi.
  • Shipping Weight: 35 lbs
  • Shipping Dimensions (Inches): 60x44x68
• Key Features and Benefits

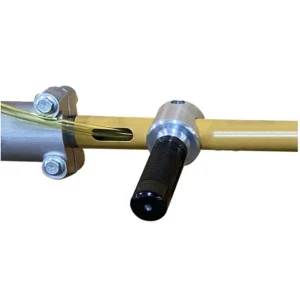

  • Hinged spine for easy access to work areas
  • Adjustable throat depth for versatile applications
  • Includes 7 radius dies for different shapes
  • Automatic oiler for reduced maintenance
  • Foot pedal operation for hands-free control
