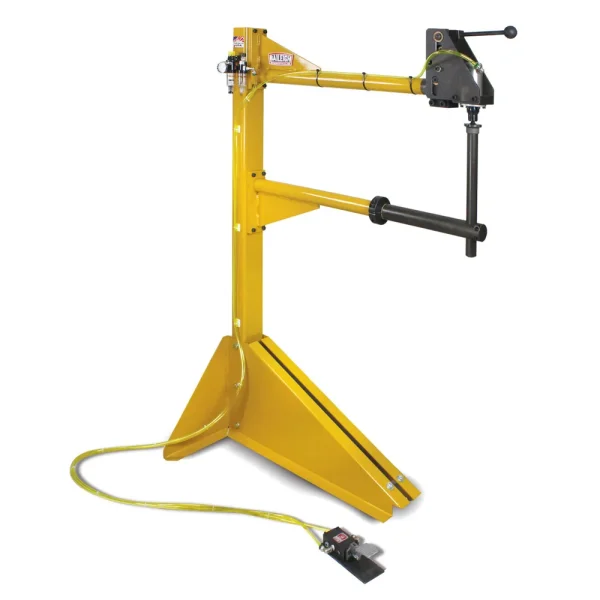

Baileigh Pneumatic Planishing Hammer 36″ Throat Depth, Inc. 7 Lower Dies (1005964) is the most versatile planishing hammer on the market. This air-powered model lands 3,200 beats per minute, providing a smooth finish for your metalworking projects. With a 36” throat depth, it can handle larger pieces, making it ideal for professional use.
The Baileigh 1005964 planishing hammer features a 16-gauge mild steel capacity and operates on just 90-120 psi. Its completely rebuildable air motor allows you to customize the hit characteristics to suit your application.
- Specifications and Dimensions
- Length: 60 in.
- Width: 44 in.
- Height: 68 in.
- Net Weight: 275 lbs
- Mild Steel Capacity: 16 ga.
- Tooling Height Adjustment: 11″
- Speed (Variable): 3200 beats / minute
- Included Tooling: Flat, 2″, 3″, 6″, 12″, 24″ Radii
- Throat Depth: 36″
- Aluminum Capacity: 14 ga.
- Power: 80 – 120 Psi
- Key Features and Benefits
- 16 gauge mild steel capacity
- 36” throat depth enables you to finish larger pieces
- Air motor runs on just 90-120 psi
- Completely rebuildable air motor lets you change the characteristics of the hit for your application
- Top and bottom supports have adjustable length for offset planishing
- Foot pedal operation leaves your hands free to move the material
- Includes 7 radius dies: flat, 2”, 3”, 6”, 8”, 12”, and 24”
- Automatic oiler keeps your machine running smoothly and saves you time on maintenance
- Optional dog-leg brace for tight radii applications
- Covered by a 1-year parts warranty
- Lifetime technical support by phone from our team of experienced metalworkers
