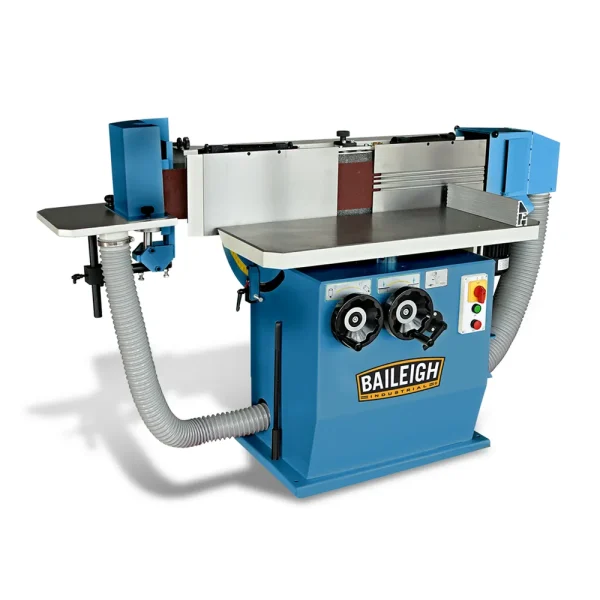

Baileigh Three Phase Edge Sander 6″ x 120″ Belt Vertical Horizontal (1004163)

Baileigh 220V Three Phase Edge Sander (1004163) is designed for heavy-duty use in industrial shops. This robust machine features a 6” x 120” belt, making it ideal for large projects such as doors and tables. With a powerful 4 hp motor, this edge sander operates efficiently, providing smooth finishes and extended belt life.

The 1004163 industrial edge sander, which can be adjusted from vertical to horizontal and tilted up to 45 degrees, ensures stability and precision. The table lift handwheel allows for easy adjustments, and the belt oscillates ¾” up and down to deliver a superior finish.

• Specifications and Dimensions
  • Length: 69 in.
  • Width: 44 in.
  • Height: 51 in.
  • Net Weight: 940 lbs
  • Motor Power: 4 HP
  • Belt Size: 6” x 120”
  • Belt Speed: 3,937 FPM
  • Table Size: 41” x 8”
  • Power: 220V / 3-phase
• Key Features and Benefits
  • Heavy cast iron table ensures stability and precision
  • 6” x 120” belt for large projects
  • Adjustable table from vertical to horizontal, up to 45 degrees

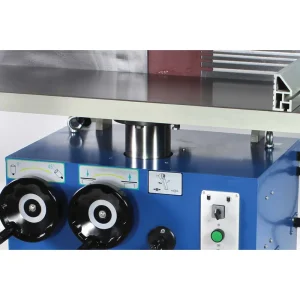

  • Table lift handwheel for easy adjustments

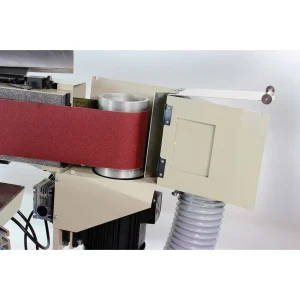

  • Oscillating belt for smoother finish and extended belt life
  • Includes 2 dust hoods for effective dust collection
  • Covered by a 1-year parts warranty
  • Lifetime technical support from experienced woodworkers
