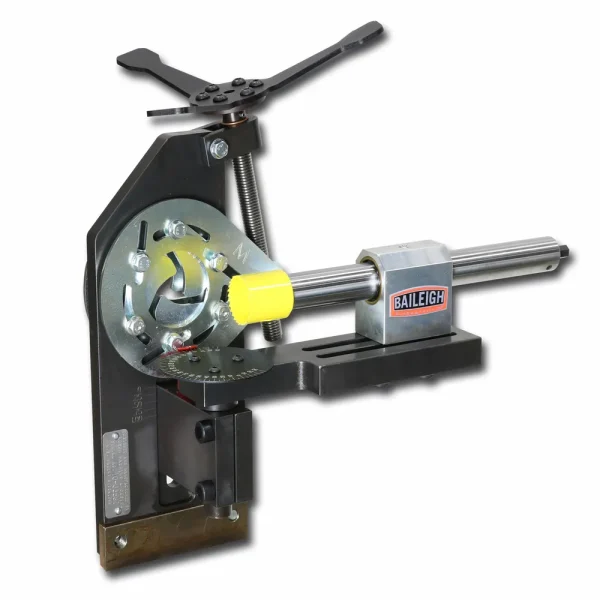

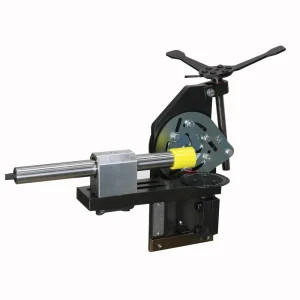

Baileigh Vice Mounted Hole Saw Tube and Pipe Notcher 2.5in OD Max Capacity (1008041) is designed to deliver precise and efficient notching for a variety of applications. This notcher can handle tubes up to 2.5” OD, making it versatile for different projects. Its patented self-centering vise allows for clamping anywhere on the tube.
The Baileigh tube notcher features a fully adjustable axis and a carriage that pivots up to 220° left to right. The large engraved degree dial aids in lining up back-side notches, while the heavy-duty.75” steel plate backbone reduces vibration.
- Specifications and Dimensions
- Length: 24 in.
- Width: 18 in.
- Height: 6 in.
- Net Weight: 43 lbs
- Notching Capacity: Up to 2.5″ OD
- Pivot Range: 220° left to right
- Mounting Rails: 2 slotted
- Shaft: 1.25” Thompson®
- Key Features and Benefits

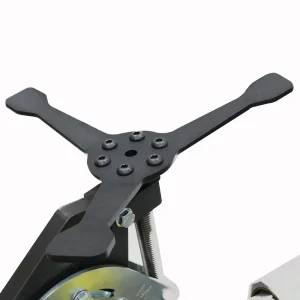

- Self-centering vise for accurate clamping
- Fully adjustable axis for various notch combinations
- 220° pivot range for versatile notching
- Heavy-duty .75” steel plate backbone to reduce vibration
- 1.25” Thompson® shaft in sealed and oiled needle bearings

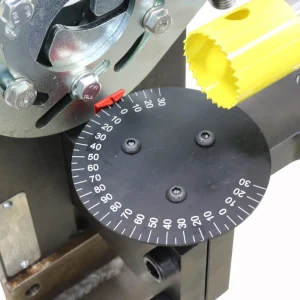

- Large engraved degree dial for precise alignment
- Replaceable shaft ends to save time and money
- 1-year parts warranty and lifetime technical support
