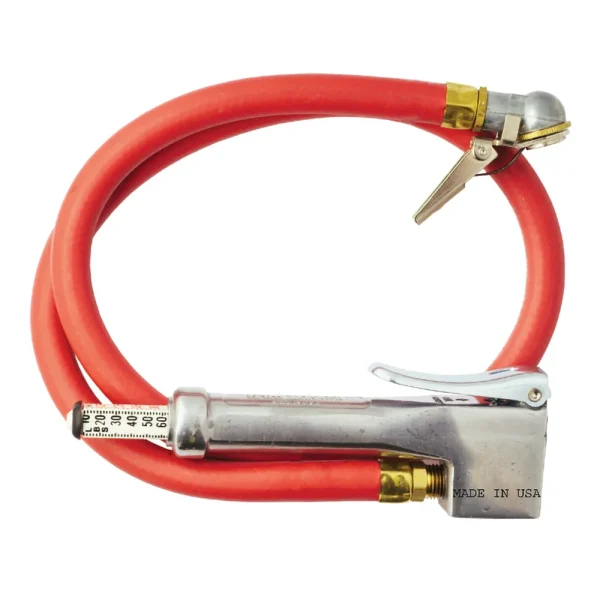

Milton® (S-523) Bayonet Tire Inflator Gauge – Grip-Style Air Chuck Head to Lock onto Valve, 120 Max PSI
Milton®’s #523 Grip-styled head chuck bayonet gauge conveniently locks onto tire valves. It has lever action and is made with heavy-duty construction, providing long service life even with constant use. Valve and gauge cartridges are replaceable and combined in one easy unit. Includes a 3-foot hose with a pressure range that offers 10-120 PSI (2-lb. increments) or 80-840 kPa (20 kPa increments). The air chuck has 7/16”-27 UNS threads. Complete with a jumbo white nylon indicator bar for easy reading.
With ¼” NPT threads, all Milton® hose whips are compatible for use and have interchangeable connections with any of the 4 Milton® Bayonet Inflator Gauge bodies: #520 (straight chuck head), #521 (single chuck head), #522 (dual truck head chuck), and #523 (grip chuck head to lock onto valve).
Recommended Replacement Parts:
S-523’s replacement air hose whip: Milton® #529 (36-inch hose whip w/valve-locking grip chuck head).
S-523’s replacement air chuck: Milton® #P500-43.
Replacement cartridge for #520-523: Milton® #525.
| Gauge Type | Bayonet style inflator gauge |
| Height | 1.375 |
| Hose Length | 3′ Hose |
| KPA Range | 80 to 840 kpa in 20 kpa units |
| Length | 10 |
| Number of Items | 1 |
| PSI range | 10 – 120 lbs in 2 lb. Increments |
| Short Description |
Milton® (S-523) Bayonet Tire Inflator Gauge – Grip-Style Air Chuck Head to Lock onto Valve, 120 Max PSI |
| UPC | 30937301109 |
| Width | 5.5 |
