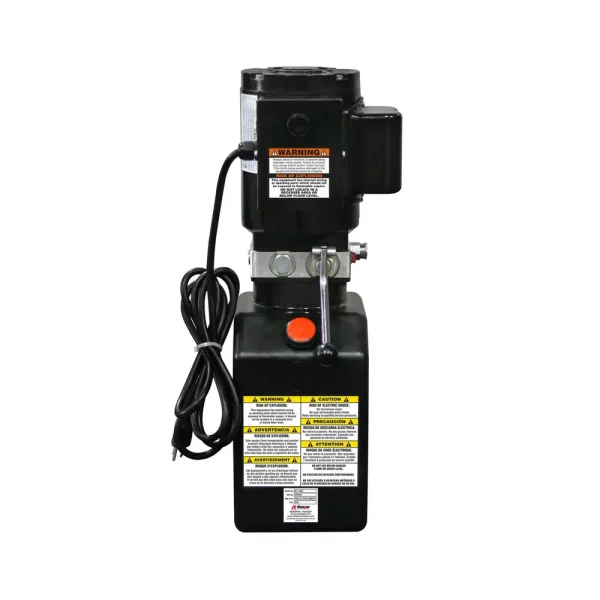

The BendPak 220V 50/60hz 1.5HP Power Unit (5585435) is a compact and efficient solution for your lifting needs. This 1.5 horsepower unit features a 1.5-gallon reservoir and a 2500 PSI pressure relief valve, making it suitable for a variety of low-rise and some full-size BendPak car lifts.
KEY FEATURES AND BENEFITS:
- Compact Design: Efficient performance without sacrificing workspace.
- Optimized Performance: Fixed-volume hydraulic circuit with pressure-sensitive relief valve for safe operation.
- Energy Efficient: Lower electricity usage during lowering operation.
- Durable Construction: Fully enclosed motor, wide temperature range, and CE certification for reliability and safety.
SPECIFICATIONS:
- Reservoir Capacity: 1.5 gallons
- Pressure Relief Valve: 2,500 PSI
- Motor Horsepower: 1.5 HP
- Voltage: 220V
- Frequency: 50/60 Hz
- CE Certified
- Shipping Weight: 59 lbs (27 kg)
- Shipping Dimensions: 39″ x 11″ x 13″ (990 mm x 279 mm x 330 mm)
- Warranty: 12 months
HOW TO USE:
Follow the manufacturer’s instructions for proper installation and operation of the BendPak 220V 50/60hz 1.5HP Power Unit. Ensure all safety precautions are observed during use.
FEATURES:
- High mechanical and volumetric efficiency pumps for quiet operation
- Compatible with various lowering valve options (manual or solenoid)
- Enclosed motors suitable for harsh environments
- Consistent torque throughout operation
- Heavy-duty start switches for long life
- Reliable cartridge-style relief valves
- Steel or plastic reservoir options for versatility
- Vertical mounting for space-saving installation
- Oil level dipstick for easy monitoring
- High-performance check valve
- Compatible with most petroleum-based fluids
