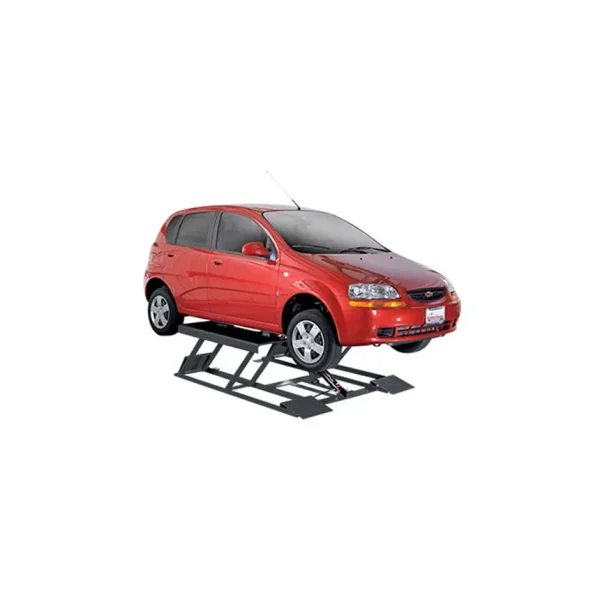

This 6,000-lb. capable lift comes loaded with an electric / hydraulic power system, multi-position safety locks, rubber lifting blocks, a dropped crossbar for added clearance and a heavy-duty steel channel frame. Let the LR-60 take those vehicles and your service capabilities to new heights.
- 6,000 pound lifting capacity
- Electric/hydraulic power system
- Hands-free safety system
- Convenient rubber lift blocks are included for added versatility and to minimize damage to vehicle undercarriage. Four durable rubber lift blocks included with each set.
- Dropped cross bar for added clearance
- Heavy-duty steel channel frame
- Style: Standard
Specifications
- Lifting capacity 6,000 lbs. / 2,724 kg
- Max lifting capacity front axle: 3,000 lbs. / 1,361 kg
- Max lifting capacity rear axle: 3,000 lbs. / 1,361 kg
- Max lifting height 26″ / 660 mm
- Max lifting height without blocks 26″ / 660 mm
- Max lifting height with 1-1/2″ blocks: 27-1/2″ / 698-1/2 mm
- Max lifting height with optional 3″ blocks 29″ / 737 mm
- Overall pad length 53″ / 1,346 mm
- Overall width 70-1/2″ / 1,791 mm
- Overall length 82″ / 2,083 mm
- Lowered height 4″ / 102 mm
- Lifting time 35 sec
- Motor 115/208-230 VAC / 50/60 Hz. 1Ph*
- Lift pad dimension 18″ x 52″ / 457 mm x 2,591 mm
- Shipping weight 814 lbs. / 370 kg
- Shipping dimensions 82″ x 70″ x 20″ / 2,083 mm x 1,778 mm x 508 mm
*Shipping Information:
- $80 Residential delivery fee.
- Forklift required at time of delivery.
- $100 Limited Access Fee for deliveries to schools.
Ships by Ground Only from manufacturer via Truck Freight. Next Day & Second Day Air Shipping Not Available.
