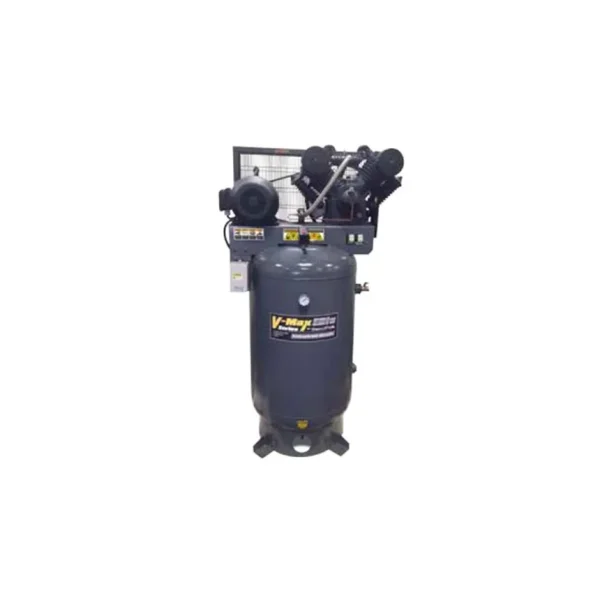

BendPak V-Max Elite™ Air Compressor / 10 HP / 120-Gallon Vertical Tank / 60 HZ 3-Phase – VMX-10120V-603

in Contiguous USA*
All otherwill be contacted with shipping costs before order is processed.

• 7-1/2 Hp, energy-efficient, UL approved Baldor™ motor
• Siemens™ UL approved electric mag-starter
• Integrated pressure unloader valve for loadless starts
• Precision balanced fan flywheel
• Fully-enclosed belt guard
• Oversized tapered roller bearings
• Precisions balanced forged ductile iron crankshaft
• Forged aluminum alloy pistons
• Forged aluminum alloy connecting rods
• 100% cast iron block
• Cast iron cylinders and heads with deep cooling fins
• Forced-air after cooler
• Oil sight gauge
• Automatic pressure switch
• ASME rated overload pressure safety valve
• Pressure gauge with service valve
• Oversized replaceable air filters
• Automatic start / stop
• ASME rated tank
• No need for harmonic balancer
• Optional Moisture Minder® available
• Optional 1/2″ rubber anti-vibration pads available

Specifications

• Tank: 80 gallons / 300 L / vertical tank
• Voltage: 230 – 460 V
• Horsepower: 7-1/2 Hp
• Phase: 3 Ph
• Hertz: 60 Hz
• Rated amps: 10 – 20 amp
• Noise level: 75 dB
• Running load amps: 9.7 – 19.4 amp
• Pump: 3 cylinder / 2 stage
• Revolutions per minute: 1,180 rpm
• Lubrication: splash / oil
• Cubic feet per minute @ 90 psi: 28.5 CFM
• Cubic feet per minute @ max psi: 25.3 CFM
• Max psi: 175 psi
• Shipping weight: 683 lbs. / 309 kg
• Shipping dimensions: 75″ x 38″ x 43″ / 1,905 mm x 965 mm x 1,092 mm

*Ships by truck freight. Forklift required at time of delivery,If no Forklift is available you can request a liftgate for an additional charge.

$100 Limited Access Fee for deliveries to schools.
