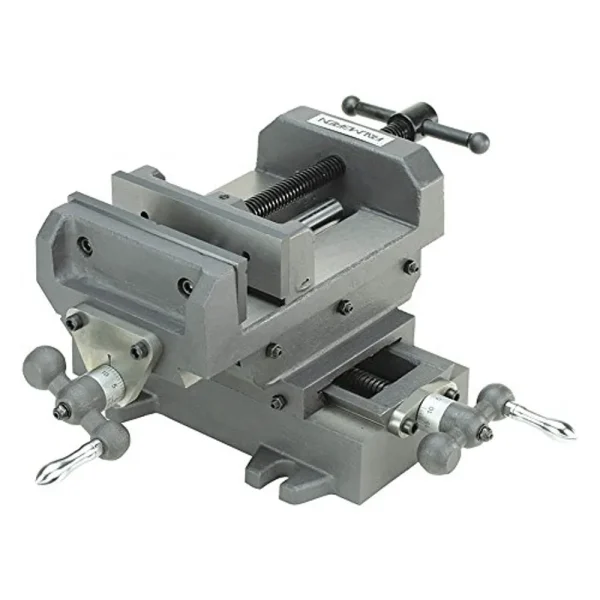

The CH Hanson 6″ Jaw Width Cross Slide Vise (9630601) is a versatile and durable tool designed to securely hold workpieces during various machining operations. Its robust construction and precise engineering make it a reliable choice for both professional and DIY workshops.
KEY FEATURES AND BENEFITS:
- Wide Jaw Capacity: The 6-inch jaw width accommodates a wide range of workpieces, ensuring a secure grip.
- Ample Travel: 8 inches of X-axis and Y-axis travel provide flexibility for positioning workpieces accurately.
- Durable Construction: Built to withstand heavy-duty use, the vise features a sturdy cast iron frame.
- Precise Alignment: The accurate alignment of the jaws ensures precise machining results.
- Easy Operation: The user-friendly design allows for quick and easy setup and adjustment.
SPECIFICATIONS:
- Jaw Width: 6 inches
- X-Axis Travel: 8 inches
- Y-Axis Travel: 8 inches
- Jaw Depth: 1.75 inches
- Jaw Opening: 6 inches
- Throat Capacity: 2 inches
- Weight: 54.85 pounds
HOW TO USE:
- Secure the Vise: Mount the vise to your machine table or workbench using the appropriate hardware.
- Adjust the Jaws: Loosen the jaw bolts and position the jaws to the desired width. Tighten the bolts to secure the workpiece.
- Position the Workpiece: Place the workpiece between the jaws and ensure it is securely clamped.
- Adjust the X and Y-Axis: Use the handles to move the workpiece along the X and Y-axis to the desired position.
- Perform Machining Operations: Proceed with your milling, drilling, or shaping operations, utilizing the precise positioning provided by the vise.
BENEFITS OF USING CH HANSON 6″ JAW WIDTH CROSS SLIDE VISE (9630601):
- Increased Productivity: The accurate alignment and secure clamping of workpieces enhance efficiency and reduce setup time.
- Improved Accuracy: The precise positioning capabilities of the vise contribute to higher accuracy in machining operations.
- Enhanced Safety: The sturdy construction and reliable clamping mechanism minimize the risk of accidents.
- Versatile Applications: The wide jaw capacity and ample travel make the vise suitable for a variety of machining tasks.
FEATURES:
- Durable cast iron construction
- Precise alignment of jaws
- Easy-to-use lever-operated clamping mechanism
- Smooth and accurate X and Y-axis movement
- Versatile for various machining applications
- Ideal for both professional and DIY workshops
