No more guessing, get the power you need! – Complete power control

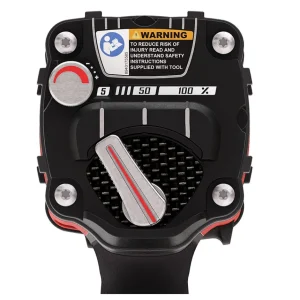

- The best and the most adjustable power control for pneumatic tools 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 and 100% of maximum torque
- Twin hammer mechanism
- Bumpers all over the tool
- Bi-material and bi-color handle and trigger
- Friction ring socket retainer
- One hand reverse – New Side2Side system
- Composite motor housing
Specifications
- Model: CP7755
- Part number: 8941077550
- Actual air consumption: 108 l/mn: 3.9 cfm
- Air inlet thread size: 1/4 “
- Blows per minute: 1200
- Working Torque Range (fwd): 80 – 575 Nm / 59 – 425 ft.lbs
- Box dimensions: 272x209x95 mm: 10,7×8,2×3,7 “
- Clutch type: Twin hammer
- Free speed: 7700 rpm
- Free speed air consumption: 5.6 cfm
- Handle type: Pistol
- Height: 7.83 “
- Length: 6.65 “
- Maximum Torque (fwd): 1080 Nm / 796 ft.lbs
- Maximum Torque (reverse): 1300 Nm / 960 ft.lbs
- Min. hose size: 10 mm: 3/8 “
- Net weight: 1.85 kg: 4.0 lb
- Power/weight ratio: 702 Nm/kg / 234 ft.lb/lb
- Side to center: 38 mm / 1-1/2 “
- Socket retainer: Friction ring
- Sound Power: 105 db(A)
- Sound pressure: 94 db(A)
- Sound uncertainty: 3 db(A)
- Square drive: 12.7 mm
- Vibration: 8.5 m/s²
- Vibration ISO: ISO-28927-2
- Vibration uncertainty (K): 3.4 m/s²
- Width: 76 mm / 3 “
*Final torque must be applied manually using a calibrated torque wrench
