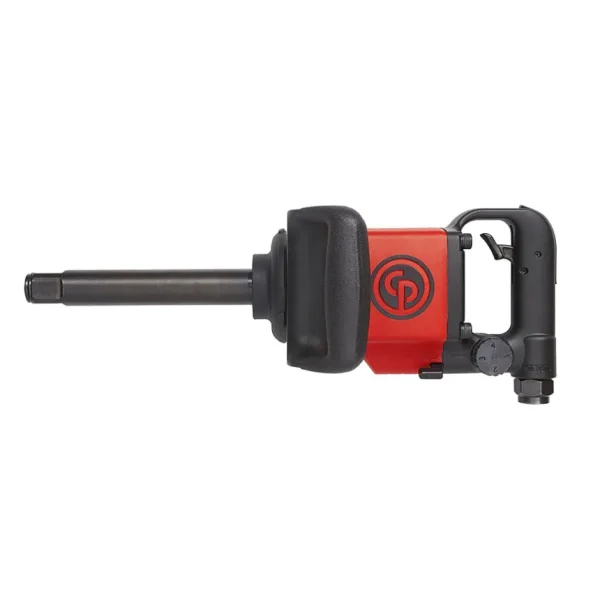

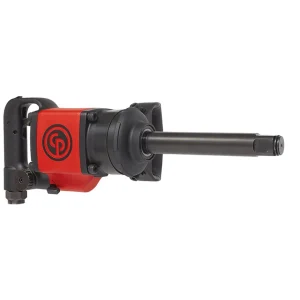

Chicago Pneumatic 1″ D-Handle Impact Wrench – CP7773D

• 1300 ft.lbs. / 1760 Nm in reverse
• Twin hammer mechanism
• Steel motor
• Intuitive Forward / Reverse lever & power regulator on both sides
• 4 position power settings on both sides
• Side handle with soft touch grip
• Down exhaust
• Aluminum housing
• Composite cover on the clutch housing
• Socket retainer ring
• 1″ Drive x 6″ extended anvil

Technical Specifications

• Square Drive: 1″
• Handle Type: D-Handle Inside Trigger
• Socket Retainer: Friction Ring
• Clutch Type: Twin Hammer
• Working Torque: 250-1070 ft. lb
• Maximum Torque REV: 1300 ft. lbs
• Free Speed: 6600 rpm
• Side to Center: 1.8″
• Actual Air Consumption: 41 cfm
• Air Inlet Thread Size: 1/2″
• Min. Hose Size: 3/8″
• Sound Pressure: 98 db(A)
• Sound Power: 109 db(A)
• Vibration: 12 m/s²
• Vibration Uncertainty: 3.3 m/s²
• Net Weight: 16.1 lbs
