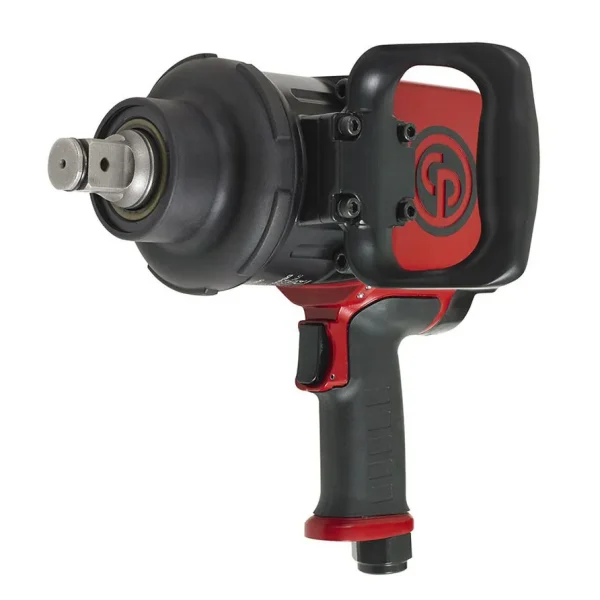

Chicago Pneumatic 1″ High Torque Air Impact Wrench

• 2400 Nm – 1770 ft.lbs maximum torque in reverse
• Pin less closed reinforced rocking dog clutch mechanism
• TPR handle & side handle – being able to rotate in 4 positions
• Regulator integrated in forward/reverse knob with 3 positions power setting in both directions
• Rubber bumper protecting both applications & tool (included)
• Socket retainer ring combined with hole retainer
• Handle being able to rotate in 4 positions for ultimate operator comfort
• Angled down exhaust blows air away from work place

Technical Specifications

• Anvil: Standard
• Handle type: Pistol
• Square drive: 1″
• Working Torque Range (fwd): 704 -1528 ft.lbs
• Maximum Torque (reverse): 1770 ft.lbs
• Free speed: 5000 rpm
• Net weight: 24.7 lb
• Power/weight ratio: 71.7 ft.lb/lb
• Length: 11.4″ / 289 mm
• Side to center: 4.3″ / 109 mm
• Average air consumption: 8.2 cfm
• Actual air consumption: 33 cfm
• Air inlet thread size: 1/2 “
• Min. hose size: 1/2″ / 13 mm
• Noise level: 93 db(A)
• Sound Power: 104 db(A)
• Vibration (ISO-28927-2): 8.7 m/s²
• Vibration K (ISO-28927-2): 2.8 m/s²
• Socket retainer: Dual (hole+friction)
• Clutch type: Pin less closed rocking dog
