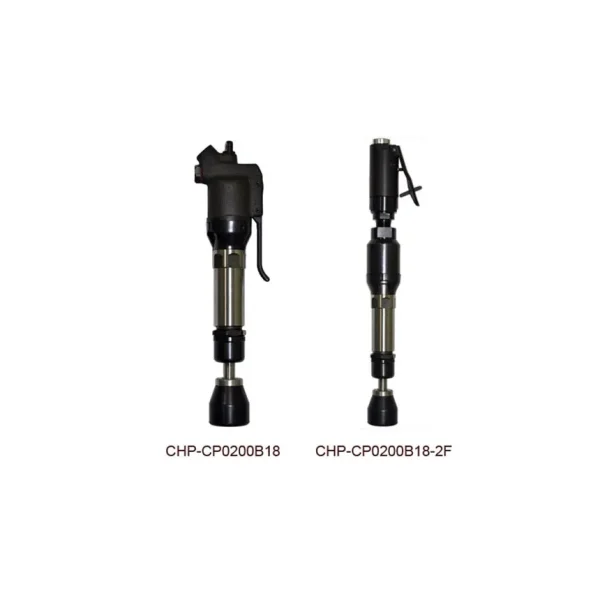

Chicago Pneumatic 1800 BPM Bench Rammer

• Ideal for foundry applications
• Comfortable operation and high production
• Bench rammers used for casting sand in cylinders, large molds
• High efficiency due to the high bpm
• Extra durability due to heat treated parts
• Push Lever

Specifications

• Blows per minute: 1800
• Bore: 0.71″ / 18 mm
• Stroke: 1.96850393700787″ / 50 mm
• Butt diameter: 1.61″ / 41 mm
• Net weight: 3.3 lb / 1 1/2 kg
• Length: 11.03125″ / 280 mm
• Average air consumption: 14.1 cfm
• Actual air consumption: 14.1 cfm / 400 l/mn
• Air inlet thread size: 0.25 “
• Min. hose size: 3/8″ / 10 mm
• Sound DBA pressure: 95 db(A)
• Sound Power: 106 db(A)
• Vibration α (ISO-28927-9): 19.4 m/s²
• Vibration K (ISO-28927-9): 5.9 m/s²
