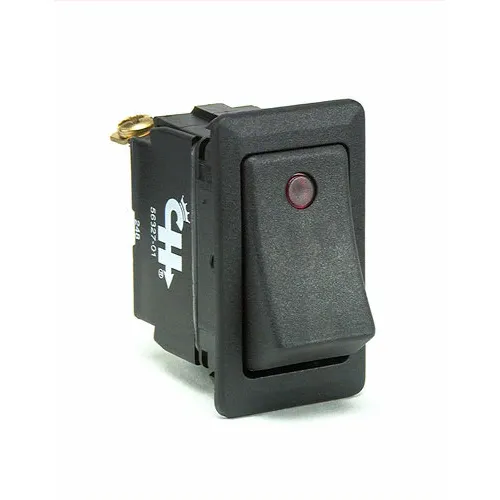

Cole Hersee 25 Amp 3 Terminal Rocker Switch – 56327-01

Rocker Switch; Weather Resistant; With Red Lens Dependent Pilot Light; 25 Amp Single Pole; 3 Screw Terminal;

• SPST On-Off
• 25A at 12V DC.
• Incandescent Red pilot light, small circular lens.
• Dependent illumination.
• Sealed to IP66 (high pressure wash resistant).
• 3 brass screw terminals.
• Silver contacts.
• Switches snap into standard rocker hole 1.45″ x 0.08″ (36.8 x 21.1mm) in panels from 0.09″ to 0.19″ thick (2.4 x 4.7mm).

Wiring your switch: There are up to 6 terminals on this switch series. Identify each type of switch by matching it with the appropriate wiring diagram in each section. Diagrams represent the switch as seen from the back. Dotted lines indicate the internal connections of the pilot light(s).

Littelfuse acquired Cole Hersee in 2010 to offer their customers a more extensive portfolio of products in the commercial vehicle market. Since Cole Hersee was founded in 1924, they have been a pioneer and leader in the development of heavy-duty electrical products for the vehicle industry, and have earned a reputation for quality and value. Cole Hersee has collaborated on many basic industry standards and is a preferred supplier of over 2,000 dependable vehicle products and accessories.
