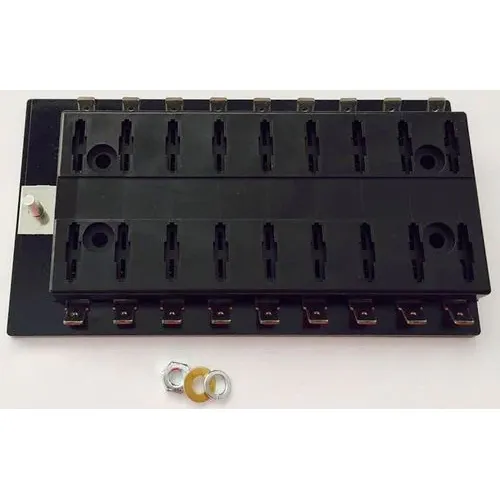

Cole Hersee Fuse Block – 46377-18

Fuse Block, 18 Gang; Features:

• Accepts ATC & ATO fuses & circuit breakers.
• Fuse/breaker contacts are recessed for safety.
• Recessed area in the center of the block accepts a label.
• Ratings: 25A maximum per circuit at 12V to 24V DC. 150A maximum total for the block at 12V DC.
• For 24V applications, use only ATC or ATO fuses.
• Black thermoplastic block.
• Blade terminals are 0.25″ wide (6.4mm).
• Stud terminal is 10-32 with hex nut, flat washer & lock washer.
• Four 0.218″ diameter (5.5mm) mounting holes take #10 screws.
• Size 3.375″W x 0.812″H x 6.22″L (85.7 x 20.6 x 158.0mm).
• Mounting holes 1.06″ (27.0mm) on centers, widthwise.

Littelfuse acquired Cole Hersee in 2010 to offer their customers a more extensive portfolio of products in the commercial vehicle market. Since Cole Hersee was founded in 1924, they have been a pioneer and leader in the development of heavy-duty electrical products for the vehicle industry, and have earned a reputation for quality and value. Cole Hersee has collaborated on many basic industry standards and is a preferred supplier of over 2,000 dependable vehicle products and accessories.
