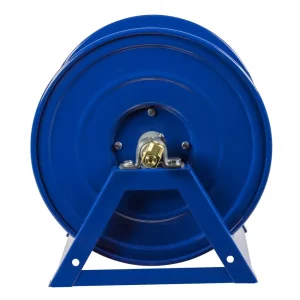

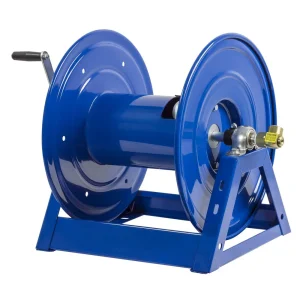

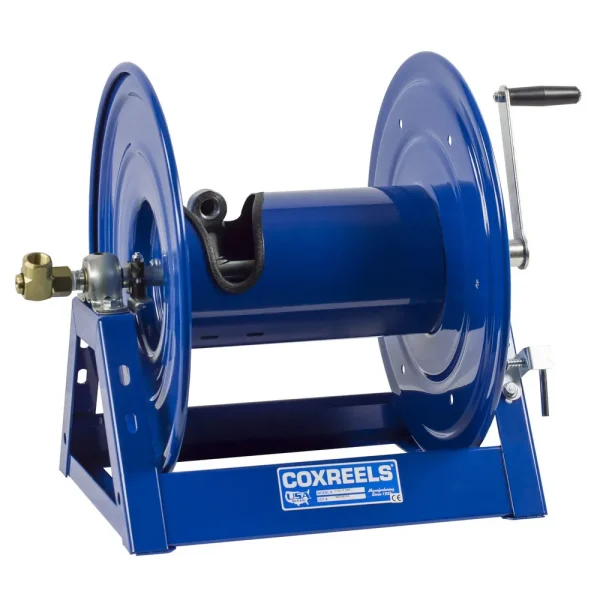

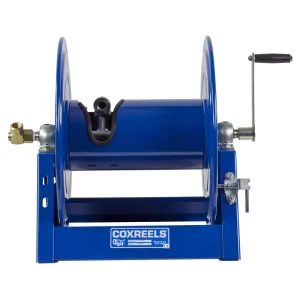

Coxreels 1125 Series Hand Crank Hose Reels – 175′ Length (1125-5-175) is designed to handle demanding industrial applications with ease. This reel offers a 3,000 PSI working pressure capacity and a solid brass swivel for efficient fluid transfer.
The Coxreels 1125 Series combines convenience and reliability with features such as self-aligning pillow block bearings for trouble-free rotation and an adjustable tension brake to prevent free-wheeling during transport or storage. Ideal for heavy-duty use, this reel supports up to 175 feet of hose with a 1 1/4″ outer diameter, making it a dependable choice for industrial environments.
- Specifications and Dimensions
- Hose I.D.: 3/4″
- Hose O.D.: 1 1/4″
- Hose Length: 175′
- Max PSI: 3,000
- Ship Weight: 50 lbs
- Drum Width: 18″
- Overall Dimensions (W x H x L): 32.38″ x 18.75″ x 17.63″
- Base Dimensions (X x Y): 23.38″ x 15.38″
- Mounting Pattern (M x N): 21.44″ x 10″
- Key Features and Benefits
- Heavy-duty A-frame steel base ensures superior durability and stability
- Low-profile outlet riser prevents crimping for smooth hose wrapping
- Self-aligning pillow block bearings for smooth and trouble-free rotation
- Adjustable tension brake prevents free-wheeling during storage or transport
- Solid brass swivel for efficient fluid transfer and easy maintenance
- Powder-coated finish offers long-lasting rust and chip resistance
