Availability: 8 in stock

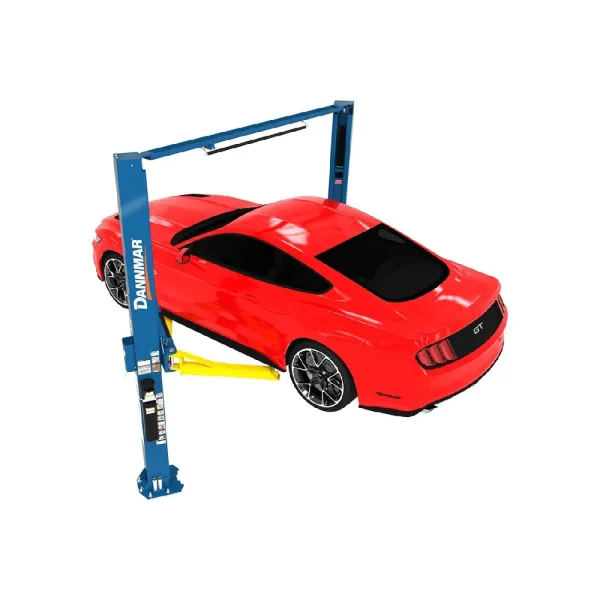

The D2-10A is an asymmetric clearfloor two-post lift that features a 10,000 lb. lifting capacity and accommodates full-size trucks, vans, and standard passenger cars. Single-piece column construction, tubular steel lifting carriage, and direct-drive hydraulic cylinders ensure the best possible performance and reliability. Rotated asymmetric columns allow vehicles to be loaded with doors clear of the columns for convenient entry and exit of vehicles.
Rugged Durability, High Performance, Extreme Versatility, Demanding Applications
The D2-10A is designed to tackle the toughest jobs in your garage or workshop and outperform and outlast almost every lift in its class. With a powerful 10,000 lb. lifting capacity, the D2-10A has been designed to accommodate full-size trucks and vans, standard passenger cars, and sport and performance vehicles.
Equipped with a self-contained electric-hydraulic power unit and twin direct-drive hydraulic cylinders, the D2-10A is extremely reliable and durable. Nested inside the unyielding welded-steel columns are solidly-built carriage assemblies that glide on maintenance-free UHMW bearings. Soft-cushioning column guides provide silent staging and shudder-free movement of the lifting carriage during both lifting and lowering.
Asymmetric columns and extended-length rear arms allow vehicles to be loaded with doors rear and clear of the columns for convenient entry and exit of the vehicle. This reduces the chance of door dings due to column interference. Easy-swing telescoping arms feature automatic arm restraints ensuring that vehicles stay put when being serviced, and tear-resistant urethane contact pads are augmented by an 8-piece set of stackable adapters of varying heights. An attractive and extremely durable powder coat finish combined with zinc-plated components means your lift will last and still look good many years to come.
Features:

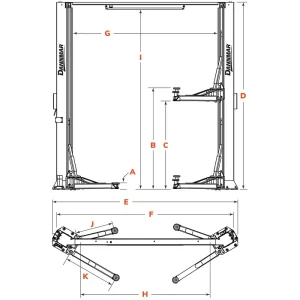

| Style: | Asymmetric |
| Lifting Capacity: | 10,000 lbs. (4,536 kg) |
| A – Lowered Height + Pad: | 5″ (127 mm) |
| B – Max. Lift Height (Top Lock): | 78.5″ (1,994 mm) |
| C – Max. Rise: | 69″ (1,753 mm) |
| D – Height Overall: | 145″ (3,683 mm) |
| E – Width Overall: | 143.5″ (3,645 mm) |
| F – Width Outside Columns: | 137.25″ (3,486 mm) |
| G – Width Inside Columns: | 120.75″ (3,067 mm) |
| H – Drive-Thru Clearance: | 100″ (2,540 mm) |
| I -Floor to Top Switch: | 141″ (3,581 mm) |
| J- Front Arm Reach: | 29.25″ (743 mm) – 43.75″ (1,111 mm) |
| K – Rear Arm Reach: | 40.25″ (1,022 mm) – 58″ (1,473 mm) |
| Max. Load per Arm: | 2,500 lbs. (1,134 kg) |
| Time to Full Rise: | 45 seconds |
| Noise: | 45 dB |
| Motor: | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight: | 1,682 lbs. (763 kgs) |
| Shipping Dimensions: | 151″ x 23″ x 35″ (4,495 mm x 597 mm x 889 mm) |
