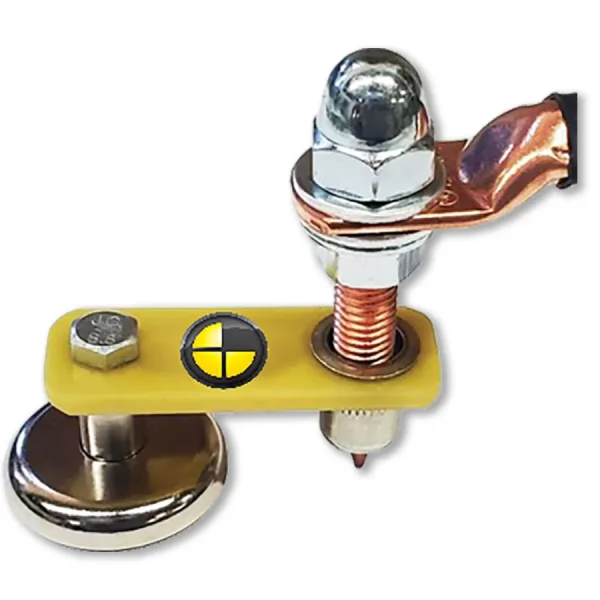

Dent Fix Welding Ground

Dent Fix Welding Ground

The Dent Fix Welding Ground outperforms standard magnetic ground blocks. It is the perfect upgrade for the Dent Fix Maxi Steel Dent Pulling Station, but the universal ground also works with most dent pullers as well as MIG, TIG, ARC welders and plasma cutters. Cable NOT included.

Adjust the height on the electrode to ensure that it makes contact with metal. Then attach the magnet to the panel with the electrode making contact to the bare metal and you are ready to work. See below installation instructions.

When not in use, cover the magnet with the included dust cover cap to keep the magnet clean and performing optimally.

Installing the Ground to the Weld Cable

1. Remove the top nut and washer
2. Insert the ground cable on top of the nut with grooves
3. Insert the washer and top nut
4. Tighten both nuts with a 15mm and 17mm wrench
5. Rotate the magnet piece either counterclockwise or clockwise to adjust the height of the electrode.

WARNING: Cancer and Reproductive Harm –
