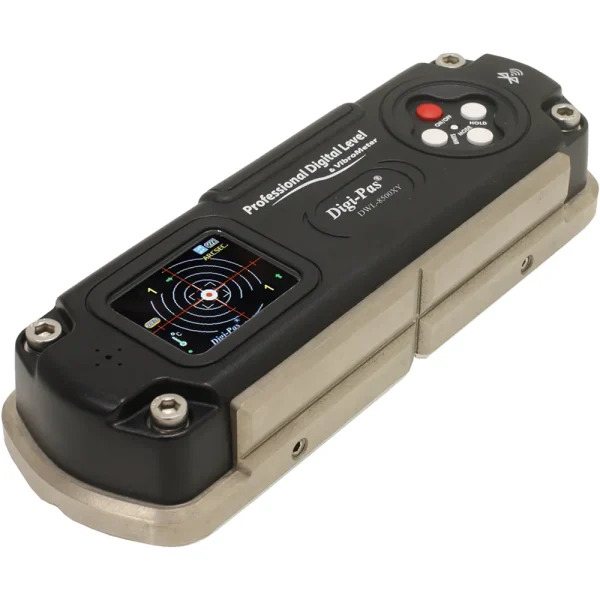

Digi-Pas 2-Axis Ultra-High Precision Digital Level & Inclinometer DWL8500XY + PC Sync PRO Software (2-08502-99) is a 2-Axis Ultra-high Precision Inclinometer with built-in Vibrometer, having a resolution and accuracy of 1 arcsec (5µm/M) and wide measuring range of 14400 arcsec or 70mm/M for leveling, 2D tilt angles, planar alignment & vibration measurements. It is capable of real-time wireless Bluetooth or USB remote measuring & data logging when used with PC Sync Software/ Mobile Sync App.
This instrument is exceptionally engineered to greatly simplifying the task of engineering professionals & scientists in the installation, setting up, maintenance, and characterization of large-sized CNC machines, plane-surface flatness profiling, precision test/measuring instruments, & 2D alignment-sensitive equipment.
- Specifications and Dimensions
- Measuring range: 0.0 to 14400 arcsec. (Single Axis); 0.0 to 7200 arcsec. (Dual Axis)
- Resolution: 1 arcsec (≤5 µm/M)
- Accuracy: ± 1 arcsec at 0 to ±1080 arcsec; 3 arcsec at other angles
- 3D surface geometry graph using PC-Sync Software for high accuracy surface flatness profile measurement)
- Digital colour graphic display of dual angles
- Vibrometer display real time low-frequency (2 to 75Hz) vibration graph
- Angular meter display real-time 2-Axis angle graph
- Wireless Bluetooth Industrial Class 1 (>30 Meters)
- Professional PC Sync Software with wireless Bluetooth or USB-cable connection to device for remote acquisition and data logging
- USB external power source
- Operating temperature: 50°F to 104°F or +10°C to +40°C
- 3-points contact base for most stable surface-to-surface contact to prevent “rocking”
- Key Features and Benefits
- High precision dual-axis measurement
- Instant 2-Axis concurrent digital display
- Real-time collection of levelling and vibration data
- Remote measurement via USB or Bluetooth connectivity
- Accredited by 3rd party calibration labs
- Includes PC Sync Software – Professional Edition for advanced features
