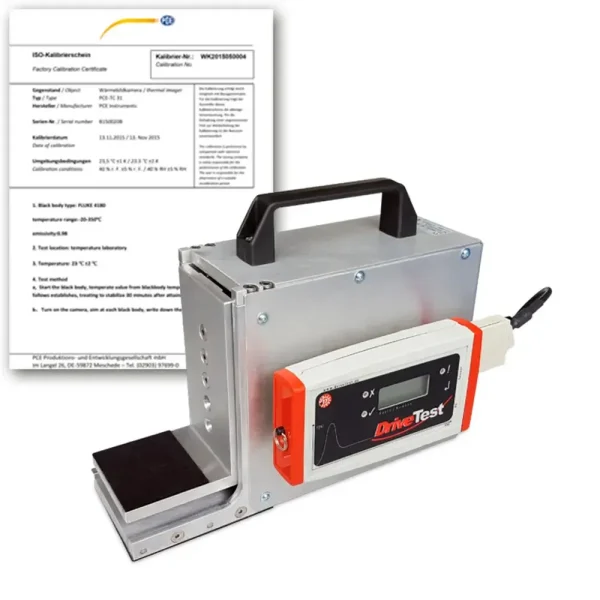

Drive Test Closing Force Measuring Device (FM202-UN-SY-10-600) is an advanced system designed for testing power-operated sliding roofs, window lifters, doors, and steps in automotive and rail applications. This high-precision device ensures compliance with industry standards while delivering reliable and repeatable results.
Built for durability, the device features a friction-free guide and a platform load cell, guaranteeing accurate force measurements up to 600 N. Its comprehensive PinchPilot software enables efficient data evaluation and seamless integration with automated testing environments, making it an essential tool for production and compliance testing.
- Specifications and Dimensions
- Measuring range: 0 – 600 N
- Accuracy: +/– 3 N (0–100 N), +/– 3% (>100 N)
- Spring rate: 10 N/mm
- Gap width: Minimum 40 mm / 1.5″
- Measurement area: 80 x 80 mm / 3.1 x 3.1″
- Dimensions: 100 x 300 x 190 mm / 3.9 x 11.8 x 7.4″
- Weight: 4.2 kg / 9.2 lb
- Key Features and Benefits
- Ensures accurate force measurement for sliding roofs, window lifters, doors, and steps
- Complies with 2000/4/EC and allows for user-defined standards
- Friction-free guide and platform load cell guarantee precise results
- PinchPilot software offers real-time evaluation and detailed reporting
- Includes
- 1 x Drive Test Closing Force Measuring Device FM202
- 1 x SEB2 display device with LCD, LED indicators, and serial interface
- 1 x 9V block battery
- 1 x USB connection cable
- 1 x USB stick with PC evaluation software PinchPilot
- 1 x Transport case with foam insert
- 1 x User manual
- 1 x ISO calibration certificate
