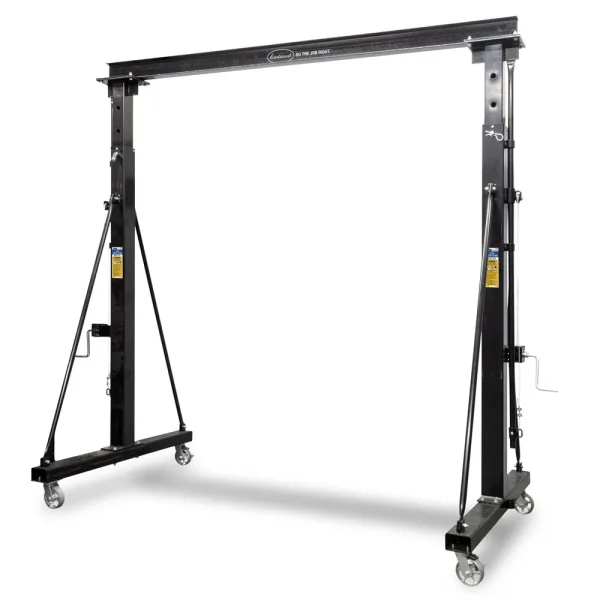

The Eastwood Gantry Crane can be used to quickly, easily and safely remove a body from its chassis, remove an engine from a vehicle, to lift a car body to be mounted on a rotisserie and much more.

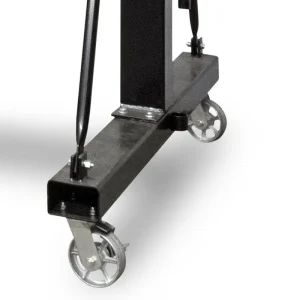

The Eastwood Gantry Crane features a heavy, all steel support structure and 5” swivel casters that can support up to a total loaded weight of 2000 lbs. [908kg.], yet is completely portable for rolling to the job and between project storage. A generous 93” [2.36m] span will accommodate large vehicles and projects.
1 Year
Max. Weight Capacity: 2000lb [908kg] Overall Height (“I”-Beam at lowest position): 99” [2.5m] Overall Extended Height (“I”-Beam at highest position): 147.5” [3.75m] Minimum Vertical Clearance (“I”-Beam at lowest position): 94” [2.38m] Maximum Vertical Clearance (“I”-Beam at highest position): 142.5” [3.61m] Overall Width: 128” [3.25m] Clearance Between Posts: 93-11/16” [2.36m] “I”-Beam Dimensions: 3” W x 5” H (76.2 x 127mm) Assembled Gantry Crane Weight: 550 lbs. [250kg.]
Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.
(1) “I”-Beam
(2) Post Assemblies
(2) Base Assemblies
(2) Swivel Casters
(2) Locking Swivel Casters
(4) Support Braces

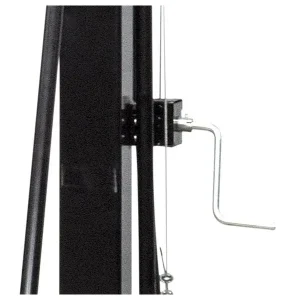

(2) Hand cranks
(2) Pin Retaining Clips
(2) Height Pins
HARDWARE
(16) M10 x 25mm Bolts
(16) M10 Flat Washers
(16) M10 Lock Washers
(16) M10 Nuts
(8) M12 x 35mm Bolts
(8) M12 x 50mm Bolts
(8) M12 x 110mm Bolts
(24) M12 Flat Washers
(24) M12 Lock Washers
(24) M12 Nuts
