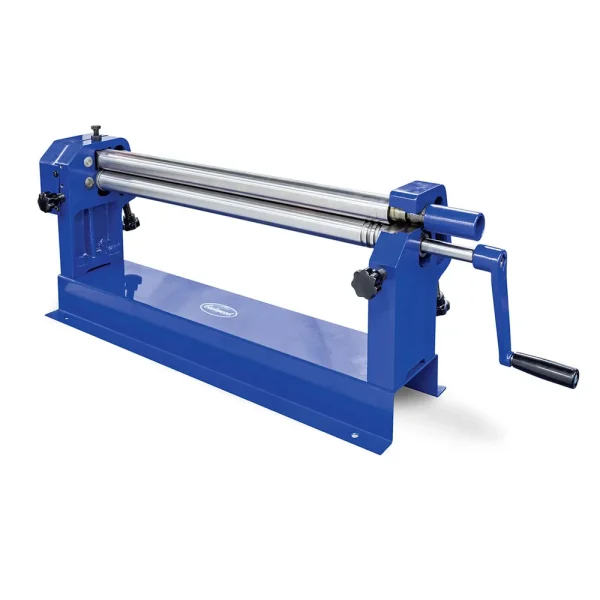

Eastwood 24 Inch Metal Forming and Fabrication Slip Roll for Bending and Shaping (20254)

Eastwood 24 Inch Metal Forming and Fabrication Slip Roll (20254) is an essential tool for professional metal fabricators, enabling precision forming of bends, cylinders, and cones in metal sheets and wire. This slip roll is designed for ease of use with gear-driven operation, delivering excellent forming power with minimal effort.

The Eastwood 24-inch slip roll is designed to work with steel sheets up to 18 gauge and aluminum up to 16 gauge. Additionally, it features grooves in three popular sizes for forming curves in wire and tubing. The adjustable rollers allow for custom fabrication of sheet metal components.

• Specifications and Dimensions
  • Roller Length: 24 inches
  • Roller Diameter: 1.5 inches
  • Minimum Forming Radius (22 Gauge Steel): 1.5 inches
  • Maximum Material Working Thickness (Steel): 18 Gauge
  • Maximum Material Working Thickness (Aluminum): 16 Gauge
  • Wire Forming Sizes: 3/16″, 1/4″, 5/16″
• Key Features and Benefits
  • Capable of forming bends, cones, and cylinders
  • Works on steel up to 18 gauge and aluminum up to 16 gauge
  • Gear-driven design minimizes handle effort
  • Adjustable rollers for custom metal fabrication
  • Rolls wire in 1/8″, 3/16″, 1/4″, and 5/16″ diameters

• Includes
  • (1) 24″ Slip Roll
  • (1) Crank Handle
  • (2) Thickness Adjustment Pins
