Availability: 10 in stock

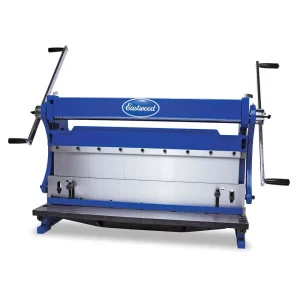

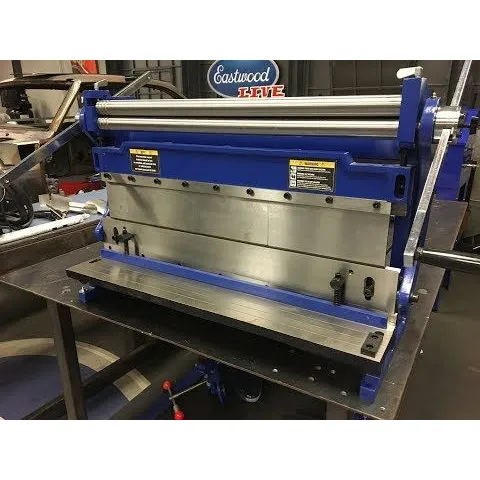

Eastwood Sheet Metal Brake, Shear and Slip Roll are three precision engineered metal working tools all rolled into one.
Compact design meant to save space and time when working with sheet metal. 6 removable fingers enable you to create boxes and pans up to 30″ wide. Adjustable stops for both the shear and brake that enable repeatable actions without measuring each time. Spring loaded hold down enables one handed operation of the shear. This machine was designed for one persons ease of use. Create complex shapes such channels, ribs,patch panels, cones, cylinders and much more in sheet metal, wire and tubing, all with one convenient bench mount tool.
1 Year
Material Length: 30”
Roller Diameter: 1.5″
Maximum Material Working Thickness (Steel): 20 Gauge
Maximum Material Working Thickness (Stainless): 24 Gauge
Maximum Material Working Thickness (Aluminum): 18 Gauge
Finger Lengths: 1″, 2″,3″, 6″,8″ and 10″
Wire Forming Sizes: 1/8″, 5/32″, and 3/16”
Deepest Box That Can Be Created: 2.5″
Smallest Cylinder That Can Be Created: 1.5″
Weight: 316 lbs.
Construction Material: Cast Iron
Dimensions (Overall): 39″ x 15.5″ x 23” tall
Dimensions (for the holes needed to bolt down the feet):31-1/8″ x 13.5″
This item ships by freight
Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.
