Eastwood 52 Inch Stomp Shear 16 Ga. Mild Steel Capacity

Original price was: $2,883.99.Current price is: $107.61.

Availability: 7 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: GTC-046402
CATEGORY: Power Tools
Description

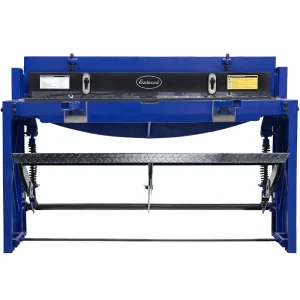

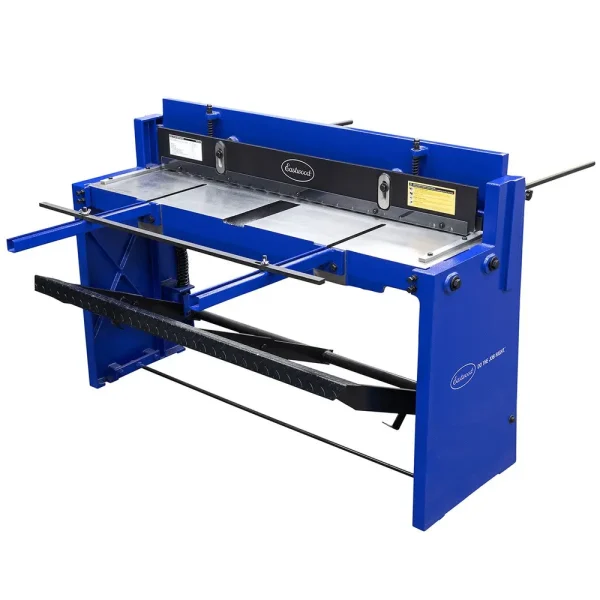

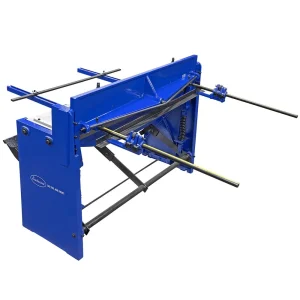

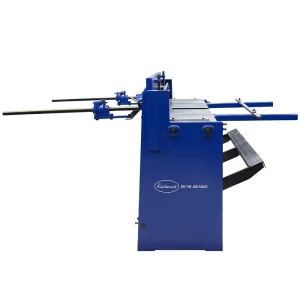

The Eastwood 52″ Stomp Shear is an industrial-grade piece of equipment ready for years of use in any shop environment. The generous cut width makes shearing common 4’ wide sheets a breeze. This machine has an extremely rigid, heavy cast iron construction that is built to last. Also included is a Back Gauge for making precisely measured, repeatable cuts, and a Front Gauge that can assist in supporting material feeding and setting feed position. The Blades are made from T10A tool steel and can be flipped to give a fresh edge, extending time between sharpening. Stop shearing by hand and jump onto a new level of efficiency!

  • Large 52″ cut width makes shearing common 4′ wide sheets a breeze
  • Back Gauge for making precisely measured and repeatable cuts
  • Front Gauge that can assist in supporting material feeding and setting feed position
  • Heavy cast iron construction with durable powder coated finish
  • T10A tool steel cutting blades

Warranty

1 Year Eastwood Warranty

Specifications

Maximum Cut Width: 52″(1321mm)

Rated Maximum Material Thickness at Maximum Cut Width:
Mild steel 0.059″ (1.5mm)
Stainless steel 0.0375″ (1.0mm)
Aluminum 0.078″ (2mm)

Table Depth: 14.25″ (360mm)
Front Gauge Depth: 22.69″ (560mm)
Back Gauge Depth: 32.50″ (825mm)

Overall Assembled Dimensions (W x D x H)
Front and Back Gauges Installed: 61.75″ x 75.00″ x 41.38″
Front and Back Gauges Not Installed: 61.75″ x 36.00″ x 41.38″
Front and Back Gauges Not Installed, Treadle Folded Up: 61.75″ x 28.00″ x 41.38″
Assembled Weight: 1001 lbs. (454kg)

Shipping & Handling

Ships Via Freight

In the Box

52” Stomp Shear 1 Front Gauge Tubes 2 Back Gauge Adjusters 2 Angle Gauge 1 Back Gauge Rods 2 Back Gauge Stop 1 Front Gauge Bar 1 Long Pins 2 Short Pins 4 Cotter Pins 4 M12x45 Screw 4 M12x40 T-Slot Bolt 3 M12 Washer 7 M12 Wing Nut 3 M10x20 Screw 2 M10 Washer 2 Eastwood Instruction Manual 1
