Eastwood 90 Amp MIG and Flux Welder – EASY Welding

Original price was: $199.98.Current price is: $59.99.

Availability: 8 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: GTC-032889
CATEGORY: Welding & Cutting
Description

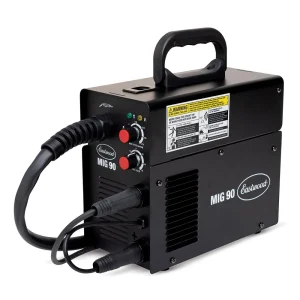

Designed with hobbyists and novice welders in mind, the Eastwood MIG 90 is perfect for light repair and fabrication projects. Operating on standard 120V household power, it’s capable of welding steel up to 1/8-in thick, making it ideal for sheet metal. Choose from MIG (requires shielding gas, not included) or gasless flux-core welding operation.

Unlike many of its direct competitors, the MIG 90 is equipped with all the accessories you need to start MIG welding as soon as you open the box. Included with the welder are a gas regulator and hose, a MIG torch with nozzle and 0.023-in. contact tip, an 8-ft ground cable, additional contact tips (0.023-in. and 0.030-in.), a welding brush/hammer, and more. Just connect your own gas bottle and you’re off and welding. If you prefer to run without gas, the MIG 90 also doubles as a flux welder. Simply replace the MIG wire with flux-core wire.

The MIG 90 uses commonly available consumables, including a Tweco-style torch, making it easy to pick up replacement tips and nozzles at virtually any welding supply shop anywhere. Of course, Eastwood always stocks a full selection of replacement parts and consumables as well.

We’re so confident you’ll love the MIG 90 that we back it up with Eastwood’s no-hassle return policy and a full 3-year warranty.

Eastwood MIG 90 Features:

  • Easy-to-use welder is perfect for hobbyists and novices
  • Ideal for light repair and fabrication projects up to 1/8-in steel
  • Gas regulator and hose included
  • Uses either 0.023-in or 0.030-in MIG or flux-core wire in 4-in (2-lb) spool
  • Tweco-style torch uses commonly available consumables for convenience
  • Adjustable power output from 30-90 amps for precision
  • Operates on standard 120V household power supply
  • 25% duty cycle at 90 amps (60% at full 65 amps)
  • Lightweight and portable – weighs less than 15 lbs
  • Backed by Eastwood’s no-hassle return policy and 3-year warranty

Warranty

3 Year Eastwood Warranty

Specifications

Recommended Breaker Size: 20 amp
Minimum Breaker Size: 15 amp
Input Voltage: 1 Phase, 120VAC, 50/60 Hz
Power Cord Receptacle Plug: NEMA 5-15P
Max Voltage at No Load: 56 V DC
Rated Duty Cycle: 25% @ 90 Amps and 60% @ 65 Amps and 100% @ 50 Amps
Torch Consumables: Tweco style nozzle and contact tips
Wire Feed Rate (IPM/Inches Per Minute): 80 – 278 IPM
Wire Sizes: 0.023-in.(0.6mm) – 0.030-in.(0.9mm) MIG wire or .030-in. Flux Cored wire
Welding Wire Spool: 4-in. Spool
Maximum Welding Thickness – Steel: 1/8-in.
Output Current Range: 120V: 30 – 90 Amps
Power: IGBT Inverter
Spool Gun Capable: No. A spool gun cannot be connected to this unit.
Weight: 14.52 lbs (6.6 kg)
Overall Dimensions: 10.75-in. X 5.50-in. X 10.75-in.

In the Box

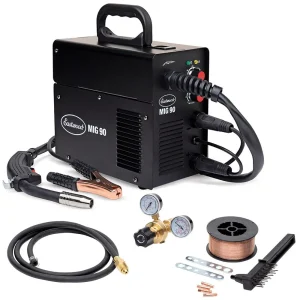

  • MIG 90 Welder
  • MIG Wire Spool 0.023-in. (0.7mm), 4-in. (2 lbs)
  • Gas Regulator with hose
  • 8-ft. Cable and Ground Clamp
  • MIG Torch, Nozzle, 0.023-in. (0.7mm) Contact Tip and 8-in. Cable
  • Face shield with lens and handle
  • Welding brush/hammer
  • Contact tip wrench
  • Additional contact tips (.023-in. and .030-in.)
  • Instruction Manual
