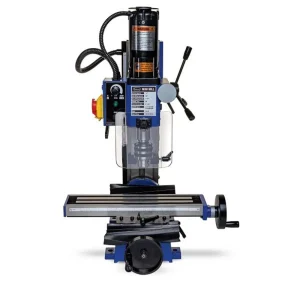

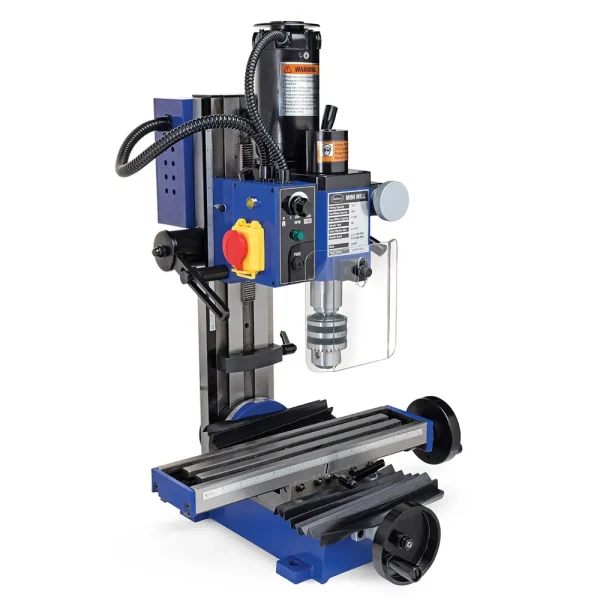

Eastwood Benchtop Mini Mill – 4 Inch x 16 Inch (32498)

Eastwood Benchtop Mini Mill – 4 Inch x 16 Inch (32498) is the ultimate milling and drilling machine for your home workshop. Whether you need to accurately slot, drill, chamfer, bevel, or face, this mini mill can handle all your projects. Its compact design, along with an R8 taper, allows for easy use with common tooling right out of the box.

This benchtop mini mill provides the power and precision needed to work on various materials, from steel to aluminum. The tilting column feature allows for accurate angle work, while the 0-2500 RPM motor control with a 2-speed gearbox ensures versatility when working with different materials.

• Specifications and Dimensions
  • Spindle Travel: 5 inches
  • Longitudinal Table Travel: 7-5/16 inches
  • Cross Table Travel: 4 inches
  • Head Tilt: Left and Right 45 degrees
  • Motor Speed: 0-1100 RPM (Low), 0-2500 RPM (High)
• Key Features and Benefits
  • Compact size, perfect for home workshops
  • Accurately slot, drill, chamfer, and bevel materials
  • Includes R8 taper collet and 3/8” end mill for immediate use
  • Tilting column for precise angle work
  • Variable speed motor for versatility
• Includes
  • 4” x 16” Mini Mill with R8 Taper and installed Drawbar
  • Chip Shield and Wrench Set
  • Drill Chuck, Chuck Key, and Spare Fuse
  • Set of Hex Keys and T Nuts M10-1.5
  • 3/8” End Mill and Collet
  • Instruction Manual
