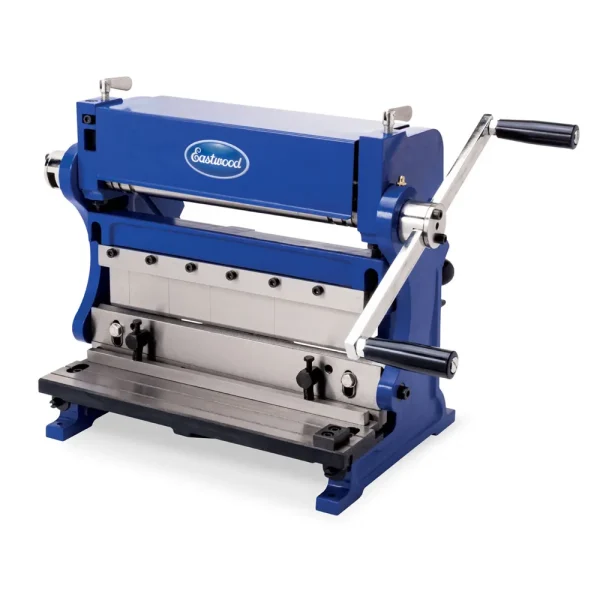

Eastwood Compact 12 Inch 3 in 1 Metal Fabrication Brake Shear and Slip Roll (21302) is the ideal tool for tight spaces and versatility in your shop. This 3-in-1 machine allows you to cut, bend, and roll metal sheets with precision, saving time and space. The compact design ensures maximum functionality in a small footprint, making it perfect for small workspaces.
The Eastwood 12 Inch 3 in 1 Brake Shear and Slip Roll features removable fingers to create boxes and pans up to 12″ wide. It includes adjustable stops for shear and brake functions, ensuring repeatable actions without needing constant measurement.
- Specifications and Dimensions
- Material Length: 12”
- Roller Diameter: 1.5″
- Maximum Material Thickness (Steel): 18 Gauge
- Maximum Material Thickness (Aluminum): 16 Gauge
- Maximum Material Thickness (Stainless Steel): 24 Gauge
- Finger Lengths: 1″, 2″ (2), 3″, and 4″
- Wire Forming Sizes: 3/32″, 1/8″, 1/4”
- Dimensions: 15” High x 15″ Wide x 11″ Deep
- Weight: 97 lbs.
- Frame Material: Cast Iron
- Key Features and Benefits
- Compact design for efficient use of space
- 5 removable fingers to create boxes and pans up to 12″ wide
- Adjustable stops for repeatable shear and brake operations
- One-handed operation with spring-loaded hold down
- Grease-able fittings ensure long-term performance
