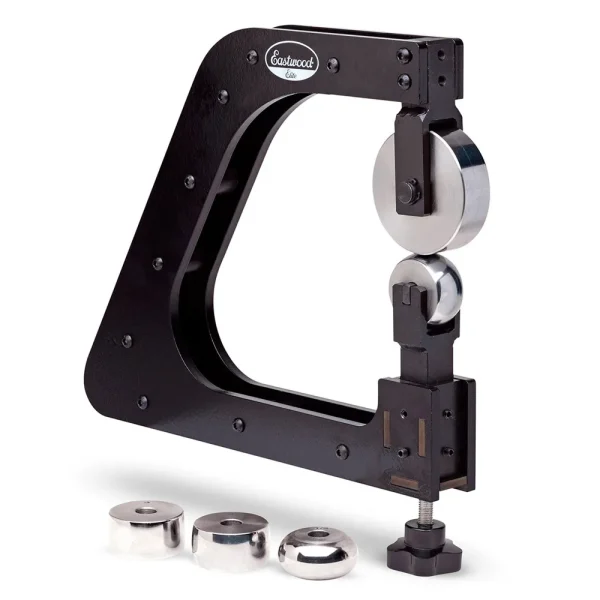

Eastwood Elite Mini English Wheel (54830)

Eastwood Elite Mini English Wheel (54830) is the perfect tool for fabricators looking to create compound curves and intricate metal shapes in a compact package. This smaller version of the classic English wheel allows you to tackle small projects or form panels that may be too intricate for a larger wheel.

With a 7.5-inch throat depth, this mini wheel can form up to 15-inch wide panels (and 20 inches on an angular plane). The vise-mount design makes it easy to set up and store, while the high-quality construction ensures durability. It includes four lower anvils with various radii and an upper wheel to handle different shaping needs.

• Specifications and Dimensions
  • Throat Depth: 7.5 inches
  • Maximum Panel Width: 15 inches (20 inches on an angular plane)
  • Upper Wheel: 3.19 inches
  • Lower Anvils: 1/2″, 1″, 2″, 3″ radius
  • Material Thickness: Up to 18-gauge steel and 16-gauge aluminum
  • Wheels Material: #45 steel with HRC18 hardness rating

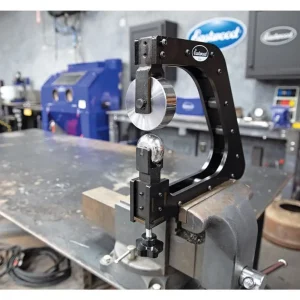

  • Mounting: Vise-mount design
• Key Features and Benefits
  • Compact design perfect for small metal forming projects
  • 7.5-inch throat depth allows for forming up to 15-inch wide panels
  • Four lower anvils included for a variety of curves
  • Micro-adjustable anvil ensures precise shaping
  • Vise-mount design allows for easy use and storage
  • Perfect for forming auto panels or general fabrication
