Availability: 6 in stock

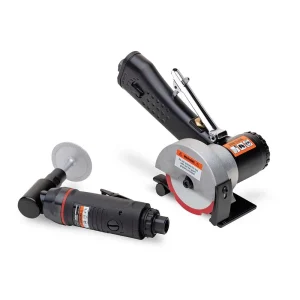

The Eastwood Elite Panel Cutting and Deburring System is an innovative metal cutting and deburring solution designed for creating extremely high accurate cuts in metal on the inside or outside of your scribe line.

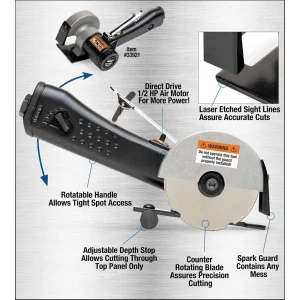

Inside-Outside Sight Line – The aluminum base plate is precision laser-etched with blade alignment marks to allow the user to make accurate cuts on the inside or outside of a scribe line. The Panel Saw is also easily capable of starting with a plunge cut, making a scroll cut, or cutting through multi-layered panels.
Quick-set depth gauge – Allows user to accurately set blade depth to cut just top panel not damaging lower panel for repair.
Powerful Performing High Quality Tool – Manufactured with a high-torque, 4 vane, ball bearing motor with hardened bevel gears provides smooth operation and long life. Speed is easily controlled with an infinitely progressive throttled trigger control.
Deburr the Inside and Outside of Your Panels – When used in combination with the Eastwood #33923 IPA 2”, 3-in-1 Diamond Grinding Wheel this Deburring tool will quickly and efficiently grind away the rough edges of cut metal, burrs, welds and other irregularities.
1 Year Warranty
Elite Panel Saw
| Air Consumption: | 4 CFM |
| Operating Air Pressure: | 90 psi |
| Free Speed: | 17,000 RPM |
| Horsepower: | 0.5 |
| Maximum Cutting Depth: | 1/4″ (6.3mm) |
| Cutting Wheel Size: | 3″ (Included) |
| Arbor Size: | 3/8″ (9.5mm) |
| Air Inlet: | 1/4″ FNPT |
| Housing Construction: | Aluminum with Cushion Grip |
| Wheel Guard Construction: | Aluminum Die Cast |
| Base Plate: | 5/32″ (4mm) Steel with Laser Etched Guide Marks |
| Spark Guard Construction: | Steel |
| Speed Adjustment: | Lever Type on Housing |
| Trigger Type: | Paddle with Safety |
| Exhaust: | Rear |
| Blade Diameter: | 3″ |
| Blade Thickness: | 0.05” |
| Blade Arbor Size: | 3/8″ |
| Blade Maximum RPM: | 20300 |
Elite Deburring Tool
| Air Consumption: | 4 CFM |
| Operating Air Pressure: | 90 psi |
| Free Speed: | 22,000 RPM |
| Horsepower: | 3.5 |
| Collet Size: | 1/4″ (6.3mm) |
| Air Inlet: | 1/4″ FNPT |
| Housing Construction: | Aluminum with Vinyl Sleeve |
| Tool Construction: | Precision Machined Solid Alloy Steel Gears |
| Speed Adjustment: | Rotary Dial on Housing |
| Trigger Type: | Paddle with Safety |
| Exhaust: | Rear |
| Wheel Shank Size: | 0.25″ |
| Wheel Shank Length: | 1.75″ |
| Wheel Cutting Edge Size: | 0.125″ |
| Wheel Abrasive Type: | Diamond |
| Wheel Abrasive Coverage Location: | Full Bottom / Partial Top |
| Wheel Cutting Wheel Size: | 3″ (not included) |
| Wheel Grit Rating: | 80 |
Eastwood Elite Panel Saw
(1) Eastwood Elite Panel Saw
(1) 14mm Offset Arbor Wrench
(1) 5mm Hex Key Arbor Screw Wrench
(1) 3mm Hex Key Guard Wrench
(1) 4mm Hex Key
(1) 2.5mm Hex Key
(1) 1/4” MNPT, Male Quick-Disconnect Inlet Fitting with Thread Sealant
(1) Lenox Diamond Cutting Wheel
Eastwood Elite Deburring Tool
(1) Eastwood Elite Deburring Tool
(1) 1/4” Collet (installed)
(1) 11mm Arbor Wrench
(1) 17mm Collet Wrench
(1) 1/4” MNPT, Male quick-disconnect Inlet Fitting with Thread Sealant
(1) 2″ Mounted Diamond Wheel
