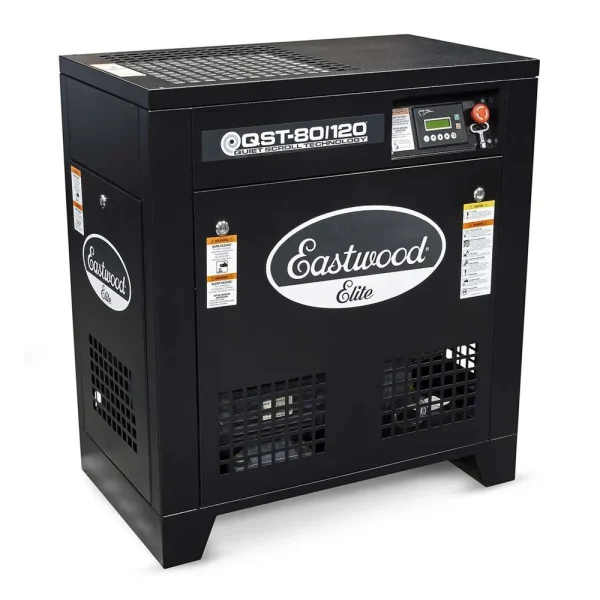

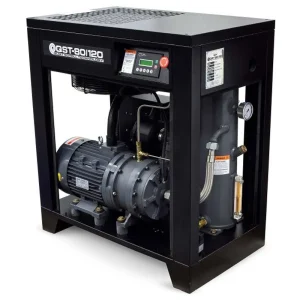

Eastwood Elite QST® 80/120 Scroll Air Compressor (32500)

Eastwood Elite QST® 80/120 Scroll Air Compressor (32500) is the perfect solution for shops in need of high air output and quiet operation. Engineered with Quiet Scroll Technology, this compressor operates at only 62 dB, making it as quiet as a typical conversation while delivering a massive 31.8 SCFM at 90 PSI.

This compressor features an 11 HP motor, cast iron scroll pump, and a 100% duty cycle for continuous use. With its innovative design, the integrated air cooler and multi-stage oil filtration system ensure long-lasting performance and easy maintenance.

• Specifications and Dimensions
  • Power Requirement: 208-240V, 60Hz, 29.8-amp, 3 phase
  • Motor Horsepower: 11 HP
  • Motor RPM: 3516
  • Sound Level: 62 +/- 3 dB at 1 meter
  • Air Output: 31.8 SCFM @ 90 PSI
  • Cut-in Pressure: 115 PSI
  • Cut-out Pressure: 145 PSI
  • Maximum Pressure: 145 PSI
  • Dimensions: 33″ long x 19-3/4″ wide x 36-5/8″ high
  • Weight: 452 lbs
• Key Features and Benefits
  • Quiet Scroll Technology, only 62 dB noise level
  • 31.8 SCFM @ 90 PSI for high air output
  • 100% duty cycle for continuous operation
  • Integrated air cooler and multi-stage oil filtration system
  • Requires a 60-gallon air tank for full operation
