Eastwood Water Cooled WP18F TIG Welder Torch

Original price was: $130.99.Current price is: $39.30.

Availability: 7 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: GTC-021784
CATEGORY: Welding & Cutting
Description

Improve Performance and Combine this WP18F Torch with the Elite TIG Water Cooler (55252)

  • Long 12′ Cable and Torch

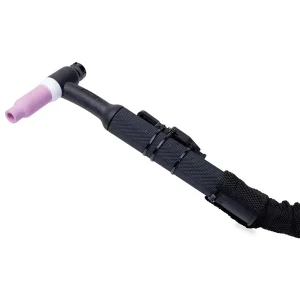

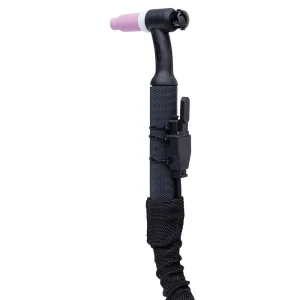

  • Flex Head Torch to get into the perfect position in tight spaces
  • Includes #5 Gas Lens, 3/32″ Collet, Collet Body and Black Cap (Installed)
  • Includes #6 and #7 Gas Lens and a 1/16″ and 5/64″ Collet
  • Use with the Eastwood Elite TIG Welding Torch Water Cooler System for best performance (55252)

Compatible with the Following Welders

  • Eastwood TIG 200 AC/DC, Model 20565
  • Eastwood TIG 200 AC/DC, Model 33920
  • Eastwood TIG 200 DC, Model 20566
  • Eastwood TIG 200 Digital, Model 20589
  • Other brands that utilize a 10-25 Dinse Connection and M16X 1.5 TIG Torch Connection

NOT COMPATIBLE with the Eastwood TIG 200 AC/DC manufactured before 2016 that did not have the dinse connector next to the TIG torch connection. Please contact Customer Service if you are unsure.

Specifications

  • Torch Model: WP-18F with Flex Head

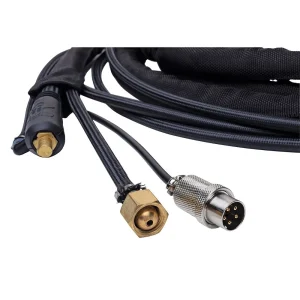

  • Power Lead Connection: Dinse 10-25
  • Shielding Gas Connection: M16 x 1.5 TIG Torch Fitting
  • Gas Line/Torch Switch Length: 12.5’ (3.80m)
  • Cable/Return Coolant Hose Combination Length:12.5’ (3.80m)
  • External Return Coolant Hose Length: 8.2’ (2.50m)
  • Inlet Coolant Hose Length: 17’ (5.20m)
  • Coolant Hose Construction: Grey Silicone, Ø5mm Inside Diameter, Braided Sleeving
  • Maximum Welding Amperage: 350A
  • In the Box

  • 12′ Cable with WP18F Flex Head Torch
  • #5 Gas Lens Lens, 3/32″ Collet, Collet Body and Black Cap (Installed)
  • #6 Gas Lens
  • #7 Gas Lens
  • 1/16″ and 5/64″ Collets
