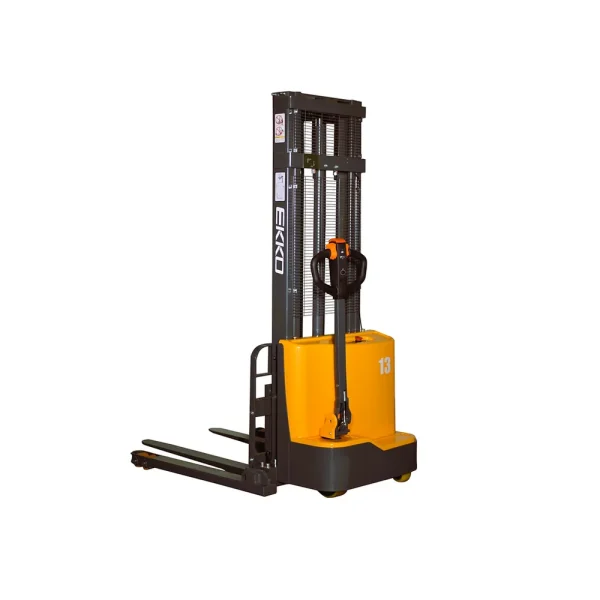

The EKKO 118″ Height Full Powered Straddle Stacker (EB13C-118) is a versatile material handling solution designed to streamline operations in warehouses, manufacturing facilities, and loading docks. This machine combines the functionality of a forklift, reach truck, and walkie stacker, offering a cost-effective and space-saving alternative to multiple specialized machines. Its straddle leg design provides stability and allows for efficient operation in narrow aisles, maximizing storage space and maneuverability. The EB13C-118 is built for reliable performance with quality steel components and a robust drive system, handling demanding tasks and diverse terrains with ease.
KEY FEATURES AND BENEFITS:
- High Capacity: Handles loads up to 2,800 lbs, making it suitable for a wide range of materials.
- Extended Reach: 118″ lift height enables efficient stacking and retrieval of goods in high storage areas.
- Adjustable Forks and Legs: Fork width adjusts from 8.6″ to 32.1″, and leg width adjusts from 35.4″ to 51.2″, accommodating various pallet and load sizes.
- Efficient Operation: Combines the functions of multiple material handling machines, saving time and resources.
- Stable Design: Straddle legs provide excellent stability and allow for operation in narrow aisles.
- Reliable Performance: Built with quality steel components and a robust drive system for long-lasting use.
- User-Friendly Controls: Ergonomic handle and intuitive controls simplify operation and reduce operator fatigue.
SPECIFICATIONS:
- Model: EB13C-118
- Lift: Electric
- Drive: Electric (DC)
- Load Capacity: 2,800 lbs
- Load Center Distance: 24 in
- Lifting Height: 118 in
- Lowered Mast Height: 75.2 in
- Overall Length: 73.4 in
- Max Overall Width: 61 in
- Fork Length: 45.3″
- Fork Adjustment Width: 8.6 – 32.1 in
- Adjustable Leg Width: 35.4 – 51.2 in
- Turning Radius: 56.1 in
- Extended Mast Height: 127.6 in
- Battery: 24V/85Ah
- Internal Charger: 24V/10A
- Lifting Motor: 2.2 kW
- Driving Motor: 0.75 kW
- Service Weight: 1,345 lbs
HOW TO USE:
- Preparation: Ensure the battery is adequately charged. Inspect the stacker for any damage or loose parts.
- Loading: Position the forks under the pallet or load. Adjust the fork width as needed.
- Lifting: Use the controls to raise the forks to the desired height.
- Transporting: Carefully maneuver the stacker to the desired location.
- Placement: Position the load over the designated area and lower the forks.
- Unloading: Remove the forks from under the pallet.
- Parking: Park the stacker in a safe and designated area. Ensure the forks are lowered to the ground.
- Maintenance: Charge the battery monthly, even if not in use, to maintain battery health.
BENEFITS OF USING THE EKKO 118″ HEIGHT FULL POWERED STRADDLE STACKER (EB13C-118):
- Increased Productivity: Streamlines material handling operations and reduces handling time.
- Improved Space Utilization: Straddle leg design allows for operation in narrow aisles, maximizing storage capacity.
- Reduced Costs: Combines the functionality of multiple machines, eliminating the need for separate purchases.
- Enhanced Safety: Stable design and user-friendly controls promote safe operation.
- Versatile Applications: Suitable for a wide range of material handling tasks.
FEATURES:
- Curtis Instrument Controller: For precise control.
- DC Drive Motor: For reliable power.
- 24V/85Ah Battery: For extended run time.
- Polyurethane Wheels: For smooth and quiet operation.
- Ergonomic Handle: For operator comfort.
