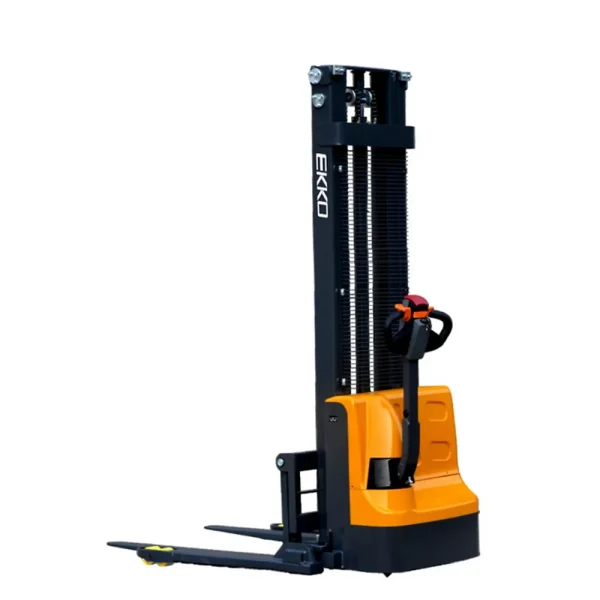

The EKKO 119.4″ Height Full Powered Straddle Stacker (EB12E) is a versatile and efficient solution for various material handling needs. It combines the functionalities of a forklift, reach truck, and walkie stacker, offering a cost-effective alternative for warehouses, manufacturing facilities, loading docks, and stockrooms. Its straddle leg design provides stability and maneuverability in narrow aisles and confined spaces. The EB12E is engineered for reliable performance and ease of use, improving productivity and streamlining operations.
KEY FEATURES AND BENEFITS:
- Versatile Material Handling: Suitable for loading/unloading trucks, managing busy loading docks, optimizing stockroom organization, and streamlining overall warehouse operations.
- High Lift Capacity and Height: A 2,640 lbs load capacity and 119.4″ (9.95 ft) lift height allow for efficient stacking and retrieval of materials in high spaces.
- Adjustable Forks and Legs: Adjustable fork width (8.3″ – 33.5″) and leg width (45.7″ – 59.1″) accommodate a variety of pallet sizes and load types, enhancing flexibility.
- Reliable Performance: Built with quality steel components and a dependable drive system, the EB12E is designed for consistent operation in demanding work environments.
- Efficient Power System: Equipped with a Curtis controller, 24V drive motor, 24V lift motor, and 24V/100Ah battery (two 12V batteries) for long-lasting operation. An internal charger simplifies battery maintenance.
- Ergonomic Design: An ergonomic handle and user-friendly controls promote operator comfort and reduce fatigue, leading to increased productivity.
- Maneuverability: The straddle leg design and compact dimensions allow for easy navigation in tight spaces.
SPECIFICATIONS:
- Model: EB12E
- Lift Type: Electric
- Drive Type: Electric
- Load Capacity: 2,640 lbs
- Lifting Height: 119.4 in
- Fork Length: 45.3″
- Fork Adjustment Width: 8.3 – 33.5 in
- Leg Adjustment Width: 45.7 – 59.1 in
- Turning Radius: 52.6 in
- Battery: 24V/100Ah (2 x 12V)
HOW TO USE:
- Preparation: Ensure the battery is adequately charged. Inspect the stacker for any visible damage or loose parts.
- Loading: Position the straddle legs around the pallet. Adjust the fork width to match the pallet. Carefully lift the forks to the desired height.
- Transport: Drive the stacker smoothly and cautiously to the intended location. Be mindful of surroundings and other personnel.
- Unloading: Position the pallet at the desired location. Lower the forks gently until the pallet rests securely. Back the stacker away carefully.
- Parking and Storage: When not in use, park the stacker on a level surface and turn it off. Connect the charger for regular maintenance charging.
BENEFITS OF USING THE EKKO 119.4″ HEIGHT FULL POWERED STRADDLE STACKER (EB12E):
- Increased Efficiency: Streamlines material handling operations, reducing time and effort.
- Improved Safety: Enhances workplace safety by minimizing manual lifting and handling.
- Cost-Effectiveness: Combines multiple functionalities into one machine, saving on equipment costs.
- Space Optimization: Operates efficiently in narrow aisles and confined spaces, maximizing warehouse space.
- Enhanced Productivity: Ergonomic design and easy operation contribute to increased operator productivity.
FEATURES:
- Steel Construction: With robotic welding for added strength and stability.
- Polyurethane Wheels: For smooth and quiet operation.
- Curtis Controller: For reliable performance.
- 24V Drive and Lift Motors: For efficient operation.
- Internal Charger: For convenient battery maintenance.
- Compact Dimensions: For maneuverability in tight spaces.
- Straddle Leg Design: For stability during operation.
