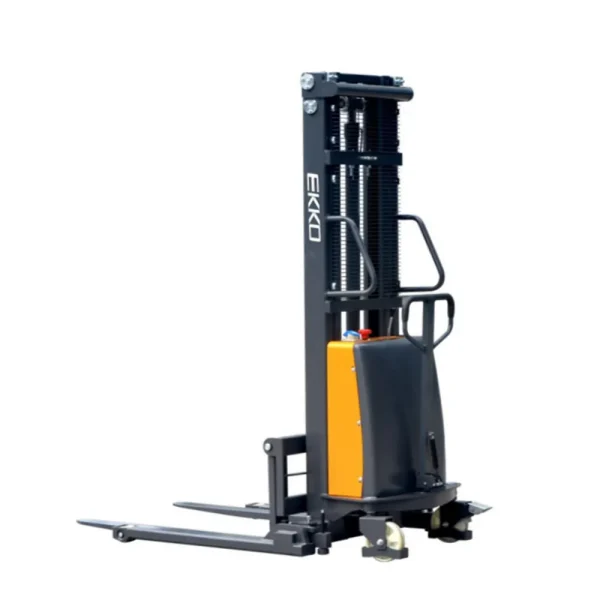

The EKKO 119.4″ Height Semi-Electric Straddle Stacker (EA15B) provides a practical and cost-effective solution for material handling needs. Combining powered lifting with manual drive, it offers a balance of efficiency and maneuverability. This stacker is well-suited for various applications, including loading/unloading, stockroom organization, and warehouse operations. Its straddle leg design allows for easy handling of closed-bottom pallets and stable operation in narrow aisles.
KEY FEATURES AND BENEFITS:
- High Lift Capacity: Handles loads up to 3,300 lbs, accommodating a wide range of palletized goods.
- Extended Lift Height: Reaches 119.4 inches (nearly 10 feet), maximizing vertical storage space.
- Adjustable Forks and Legs: Adapts to various pallet sizes and widths for increased versatility.
- Semi-Electric Operation: Electric lifting minimizes manual strain, while manual drive allows precise positioning.
- Robust Construction: Built with steel components and robotic welding for reliable performance.
- Maneuverable Design: Suitable for operation in confined spaces.
SPECIFICATIONS:
- Model: EA15B
- Load Capacity: 3,300 lbs
- Max Lift Height: 119.4 in
- Fork Length: 45.3 in
- Overall Fork Width: 8.3″ – 33.4″
- Leg Width (Adjustable): 43.5″ – 59.1″
- Turning Radius: 53.2 in
- Battery: 12V/120Ah
- Lift Motor: 12V/1500W
- Weight: 1,200 lbs
HOW TO USE:
- Prepare the Stacker: Ensure the battery is adequately charged. Inspect the stacker for any damage or loose parts.
- Position the Forks: Adjust the fork width to match the pallet. Ensure the straddle legs are positioned correctly around the pallet.
- Lift the Load: Use the electric lift control to raise the forks to the desired height.
- Move the Load: Manually push or pull the stacker to transport the pallet.
- Lower the Load: Carefully lower the forks using the lift control.
- Release the Pallet: Once the forks are fully lowered, move the stacker away from the pallet.
- Maintenance: Charge the battery monthly, even when not in use. Lubricate moving parts as needed.
BENEFITS OF USING THE EKKO 119.4″ HEIGHT SEMI-ELECTRIC STRADDLE STACKER (EA15B):
- Increased Efficiency: Electric lifting reduces manual labor and speeds up material handling tasks.
- Improved Safety: Reduces the risk of strain and injuries associated with manual lifting.
- Optimized Space Utilization: High lift height allows for efficient use of vertical storage space.
- Versatile Application: Adjustable forks and legs accommodate a wide range of pallet sizes.
- Cost-Effective Solution: Offers a balance of performance and affordability.
FEATURES:
- Polyurethane Wheels: For smooth movement.
- Ergonomic Handle: For comfortable operation.
- Steel Construction: For strength and durability.
- Robotic Welding: For precise and robust assembly.
- 12V Battery with Internal Charger: For convenient power.
- Straddle Design: For handling closed-bottom pallets.
- Manual Drive: For precise positioning in tight spaces.
