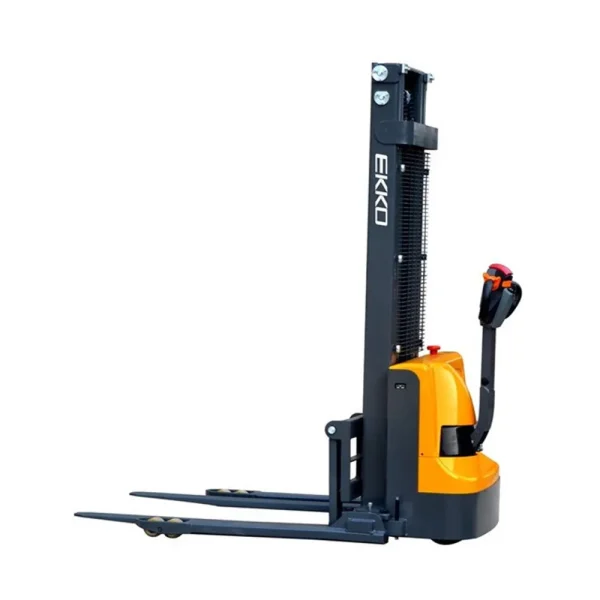

The EKKO 145.67″ Height Full Powered Straddle Stacker (EB12EA) is a versatile and efficient solution for various material handling needs. It combines the functionality of a forklift, reach truck, and walkie stacker into one compact and maneuverable machine. Ideal for warehouses, loading docks, and stockrooms, the EB12EA optimizes space utilization and improves productivity. Its straddle leg design allows it to work with various pallet types, including closed-bottom pallets, and provides excellent stability.
KEY FEATURES AND BENEFITS:
- Polyurethane Wheels: Quiet operation and minimal floor damage.
- Ergonomic Controls: Comfortable and easy to use.
- Steel Construction: Provides strength and durability.
- Internal Charger: Convenient and easy battery charging.
- Curtis Controller: Reliable and precise control.
SPECIFICATIONS:
- Model: EB12EA
- Lift/Drive: Electric/Electric
- Load Capacity: 3,000 lbs
- Load Center Distance: 24 in
- Lifting Height: 145.67 in
- Lowered Mast Height: 95.67 in
- Overall Length: 70 in
- Max Overall Width: 61 in
- Fork Length: 45.3″
- Fork Adjustment Width: 8.3 – 33.5 in
- Fixed Leg Length: 36.5 in
- Adjustable Leg Width: 45.5 – 59.1 in
- Turning Radius: 52.6 in
- Extended Mast Height: 167.28 in
- Battery: 24V/120Ah (2 x 12V)
- Internal Charger: 24V/15A
- Lifting Motor: 2200W
- Driving Motor: 1500W
- Service Weight: 1,584 lbs
HOW TO USE:
- Preparation: Ensure the battery is adequately charged. Inspect the stacker for any damage or loose parts. Verify the load capacity and ensure the load is properly secured on the pallet.
- Positioning: Maneuver the stacker to the pallet. The straddle legs should position around the pallet, ensuring clearance.
- Fork Adjustment: Adjust the fork width to match the pallet width.
- Lifting: Use the controls to lift the forks to the desired height. Exercise caution and maintain a safe distance.
- Transporting: Carefully transport the load to the desired location. Be mindful of your surroundings and any obstacles.
- Lowering: Once at the destination, carefully lower the load to the ground or shelf.
- Unloading: Remove the forks from the pallet.
- Parking: When not in use, park the stacker in a designated area and turn it off.
BENEFITS OF USING THE EKKO 145.67″ HEIGHT FULL POWERED STRADDLE STACKER (EB12EA):
- Increased Productivity: Electric operation and high lift height enhance workflow efficiency.
- Improved Safety: Reduces manual handling and the risk of injuries.
- Space Optimization: Compact design and narrow aisle maneuverability maximize storage capacity.
- Versatile Applications: Suitable for various tasks, from loading/unloading to stockroom organization.
- Reduced Labor Costs: Streamlines operations and minimizes the need for manual labor.
FEATURES:
- Straddle Leg Design: Handles various pallet types, including closed-bottom pallets, and provides enhanced stability.
- Adjustable Forks and Legs: Accommodates different pallet sizes for increased flexibility.
- Electric Lift and Drive: Smooth and efficient operation with reduced operator fatigue.
- High Lift Capacity and Height: Handles heavy loads and reaches high storage areas.
- Compact Design: Operates in confined spaces and narrow aisles.
