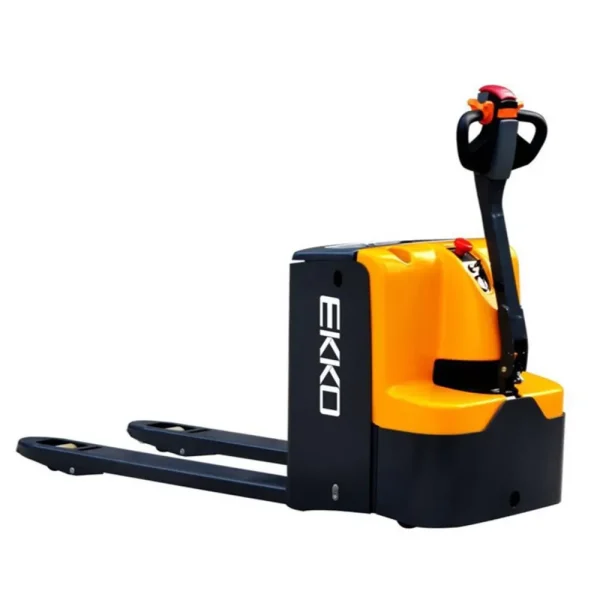

The EKKO 5500lb Capacity Walkie Pallet Jack (EP25E) is a reliable and efficient solution for material handling needs in warehouses, distribution centers, and manufacturing facilities. This electric pallet jack simplifies the movement of heavy loads, reducing physical strain and increasing productivity. Its robust design and user-friendly features make it an essential tool for any operation requiring efficient pallet handling.
KEY FEATURES AND BENEFITS:
- High Capacity: Handles loads up to 5500 lbs, making it suitable for a wide range of palletized goods.
- Electric Lift and Drive: Reduces manual labor and speeds up material handling processes.
- Standard Fork Size: 27″ x 48″ forks accommodate most standard pallets.
- Optimal Lift Height: 7.9″ lift height allows for easy loading and unloading.
SPECIFICATIONS:
- Load Capacity: 5500 lbs
- Load Center: 24″
- Wheel Base: 53″
- Lowered Fork Height: 3.33″
- Lifting Height: 7.9″
- Overall Length: 71.2″
- Overall Width: 27.5″
- Fork Size: 2″ x 6″ x 48″
- Turning Radius: 60″
- Lifting Speed: 0.8 in/s (laden), 1.1 in/s (unladen)
- Lowering Speed: 1.5 in/s (laden/unladen)
- Max Gradient Performance: 8% (laden), 15% (unladen)
- Drive Motor: 1.3 kW
- Lift Motor: 0.8 kW
- Battery: 24V/240Ah
- Weight (with battery): 1100 lbs
HOW TO USE:
- Preparation: Ensure the battery is charged and the area is clear of obstacles.
- Positioning: Approach the pallet squarely, aligning the forks with the pallet openings.
- Fork Entry: Lower the forks to the appropriate height and carefully drive them into the pallet openings.
- Lifting: Use the control handle to raise the pallet to the desired height.
- Transporting: Drive the pallet jack smoothly and carefully to the intended location.
- Lowering: Use the control handle to lower the pallet to the ground.
- Fork Withdrawal: Back the pallet jack away from the pallet.
BENEFITS OF USING THE EKKO 5500LB CAPACITY WALKIE PALLET JACK (EP25E):
- Increased Productivity: Electric operation allows for faster and more efficient material handling.
- Reduced Physical Strain: Minimizes manual lifting and pushing, reducing the risk of operator injury.
- Improved Safety: Safety features like electromagnetic brakes and reverse safety enhance workplace safety.
- Versatile Application: Suitable for various material handling tasks in diverse environments.
- Cost-Effective Solution: Increases efficiency and reduces labor costs.
FEATURES:
- Low Profile Design: 3.3″ lowered height enables easy entry into pallets.
- Durable Construction: Built with high-quality steel and components for long-lasting performance.
- Ergonomic Operation: Comfortable handle and intuitive controls minimize operator fatigue.
- Enhanced Safety: Electromagnetic brakes and belly button reverse safety feature ensure safe operation.
