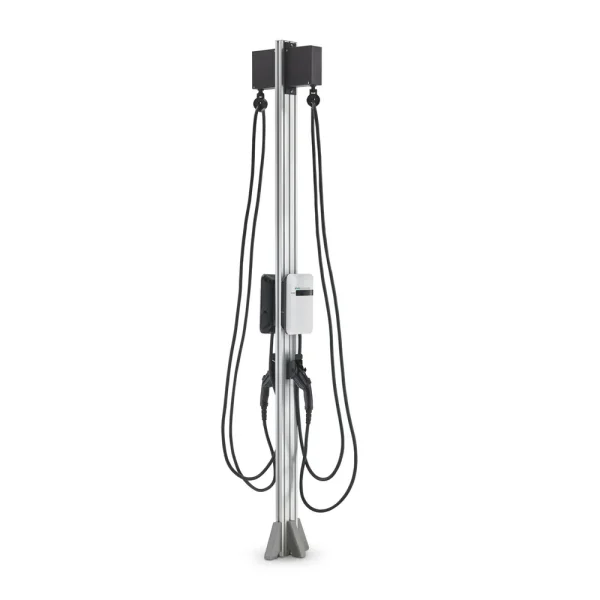

The EvoCharge iEVSE Plus WiFi & 4G 8′ Pedestal (EVC3AC0B1A1A4) offers a smart and reliable Level 2 charging solution for electric vehicles. Its compact design, robust construction, and versatile installation options make it suitable for a wide range of applications, from residential garages to commercial parking lots. This charger prioritizes convenience, performance, and future-proof connectivity. The included 8-foot pedestal and integrated cable retractor make for a neat and easy-to-use charging setup.
KEY FEATURES AND BENEFITS:
- Fast Level 2 Charging: Enjoy significantly faster charging speeds compared to standard Level 1 chargers, reducing downtime and getting you back on the road quicker. Supports up to 30A (7.2kW) output.
- Smart Connectivity: Integrated WiFi and 4G LTE allow for remote monitoring, control, and data collection. OCPP 1.6 compliance ensures compatibility with various charging networks.
- Flexible Installation: The included 8-foot pedestal simplifies installation in various locations. The retractor can also be wall or ceiling mounted. The charger itself offers adjustable amperage (30A, 24A, 16A) to match your electrical setup.
- Enhanced Access Control: A built-in RFID card reader provides secure access control and enables convenient payment options for commercial use.
- Convenient Cable Management: The spring-loaded retractor keeps the charging cable organized and off the ground, preventing tangles and extending cable life.
- Durable and Weatherproof: The NEMA 4 rated enclosure protects the charger from the elements, ensuring reliable operation in any environment.
SPECIFICATIONS:
- Charging Level: Level 2
- Output: Adjustable: 30A (7.2kW), 24A (5.76kW), 16A (3.84kW)
- Connectivity: WiFi, 4G LTE
- Connector Type: SAE J1772
- Mounting: Pedestal (included), Wall, Ceiling
- Enclosure Rating: NEMA 4
- Pedestal Height: 8 feet
- Dimensions: EVSE: 11.0 x 7.5 x 3.2 inches; Retractor: 9.5 x 3 x 6.75 inches; Pedestal: 8 ft.
- Electrical Requirements: 208-240VAC, Single Phase (Dedicated circuit required; 40A recommended for 30A output)
- Certifications: UL/cUL Listed; SAE J1772, UL 2594, UL 355, CSA; EVOREEL: ETL/cETL
HOW TO USE:
- Installation: It is strongly recommended that a qualified electrician install the EvoCharge iEVSE Plus charger, ensuring proper wiring and adherence to local electrical codes.
- Connection: Once installed, connect the charging cable to the EVSE.
- Plug-in: Plug the SAE J1772 connector into your electric vehicle’s charging port.
- Authorization (if applicable): If using the RFID card reader, present your authorized card to the reader.
- Charging: The charging process will begin automatically. Monitor the charging status using the LED indicators on the unit.
- Disconnection: Once charging is complete, unplug the connector from your vehicle. The retractor will neatly store the cable.
BENEFITS OF USING THE EVOCHARGE iEVSE PLUS WIFI & 4G 8′ PEDESTAL (EVC3AC0B1A1A4):
- Saves Time: Level 2 charging drastically reduces charging time compared to Level 1, allowing you to get back on the road faster.
- Convenient Control: The smart features provide convenient remote control and monitoring via WiFi and 4G, giving you insights into your charging sessions and usage.
- Versatile Placement: The pedestal and retractor setup gives flexible placement with the option for wall or ceiling mounting as well.
- Safety & Security: The RFID card reader and secure network connectivity enhance access control and help prevent unauthorized usage.
- Organized Storage: The integrated retractor keeps the charging cable neat and tidy.
- Future-Proof: OCPP compliance ensures the charger can be integrated with future charging networks and technologies.
FEATURES:
- Adjustable Amperage: Choose from 30A, 24A, or 16A to accommodate various electrical circuit capacities.
- OCPP 1.6 Compliant: Seamless integration with various charging networks for enhanced interoperability.
- Integrated RFID Reader: Provides controlled access for commercial and multi-tenant applications.
- NEMA 4 Rated Enclosure: Weatherproof and rugged for both indoor and outdoor installation.
- LED Status Indicators: Clearly display the charging status (Power/Ready, Charging, Fault).
- Automatic Retractor: Automatically retracts and stores the charging cable.
- 8-foot Aluminum Pedestal: Provides an elegant and robust mounting solution.
